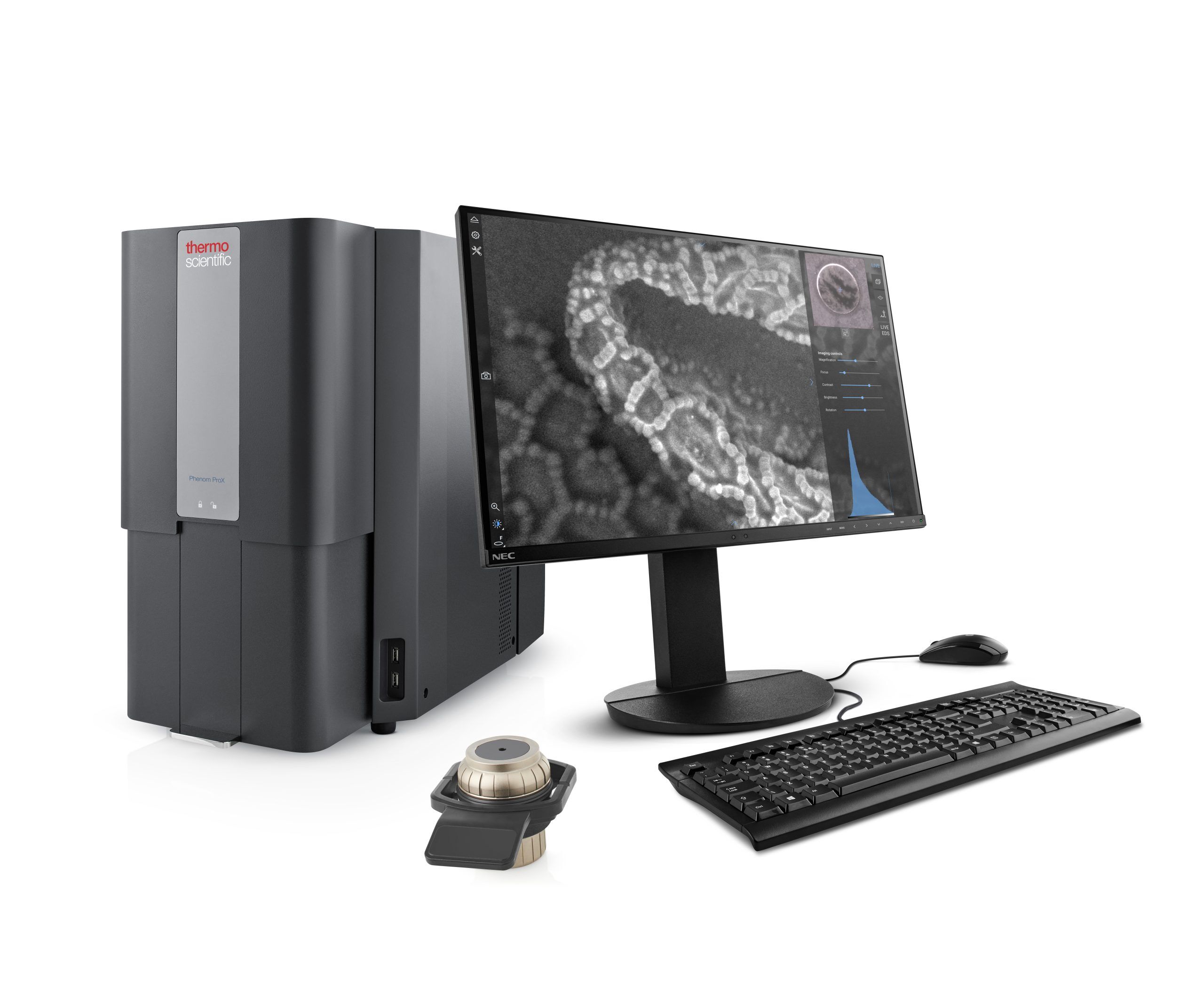

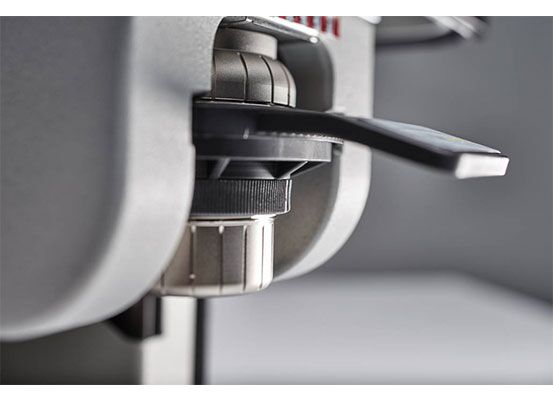

Super fast, affordable SEM

After loading the sample an instant optical image is received followed by an electron image in <30 seconds.

Ease of use with “never lost” sample navigation

Equipped with an optical colour microscope the user can swiftly navigate to any region of interest with just a single click and keep the image overview of the sample.

Low maintenance

The long lifetime, high brightness thermionic source (CeB6 ) enables extremely stable operation and has a typical operational lifetime of 3000 hours, which is ideal for maximum useability, serviceability and uptime.

Multiple detectors for additional information

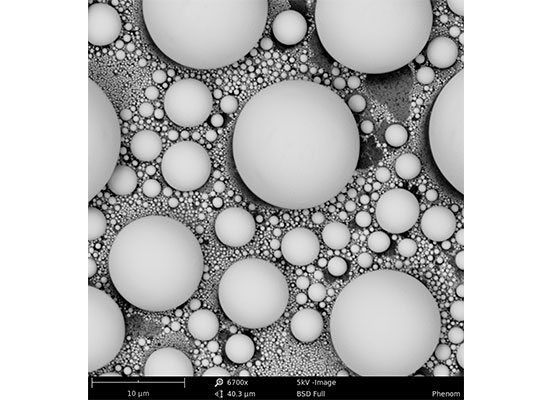

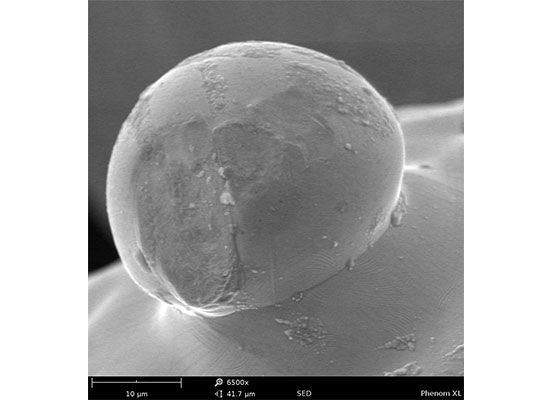

Back-Scatter Detector (BSD) yields sharp images and provides chemical contrast information. An optional Secondary Electron Detector (SED) enables surface sensitive imaging.

Acceleration voltages can be adjusted: 5 kV to 15 kV.

Intuitive software

• ChemiSEM Technology – provides real-time, color-coded elemental mapping.
• PPI/PPA – Programming Interface (API) that enables users to control Phenom desktop SEM through Python scripting.
• ProSuite –  includes applications such as ParticleMetric, PoroMetric, FiberMetric and 3D Roughness Reconstruction.
• Maps 3 Software – automates acquisition of large datasets, including SEM imaging and EDS mapping, and seamlessly stiches and aligns them to provide detailed images across large sample areas.

Make Product Enquiry

Applications

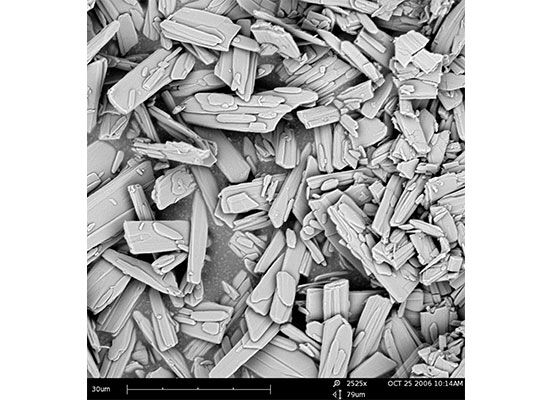

• Material sciences – observe and analyse surfaces, compounds and particles Industrial manufacturing – paints & coatings, construction materials, filtration, automotive and aerospace engineering
• Industrial manufacturing – paints & coatings, construction materials, filtration,automotive and aerospace engineering

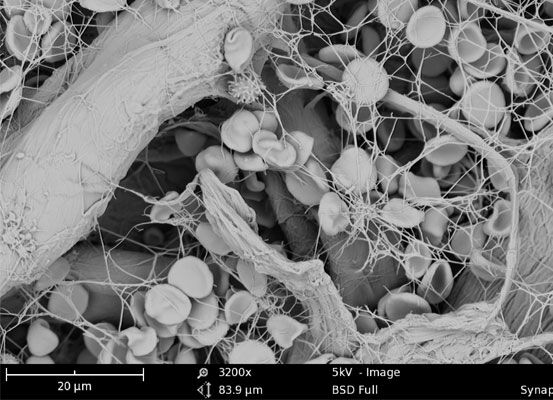

• Life sciences – Biomedical, food, microbiology, cell biology
• Forensics – Crime scene investigation, gunshot residue, traffic accidents
• Electronics – component PCBs, MEMS, Semiconductor and data storage

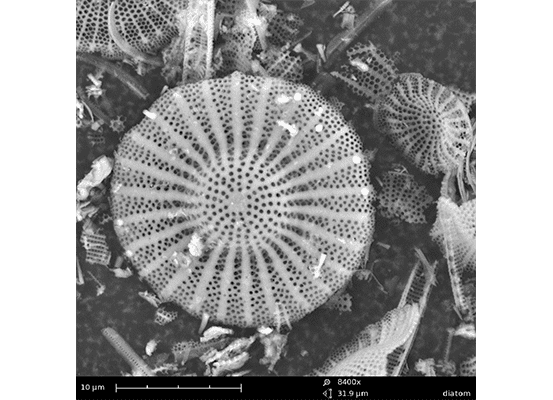

• Earth Sciences –Environment, minerals, Paleontology
• Education – inspire young students to see the world 10 times smaller than the wavelength of visible light

Make Product Enquiry

Accessories

Standard sample holder

Suitable for most samples up to 25mm diameter and 30mm height, mounted on standard sample pin stubs.

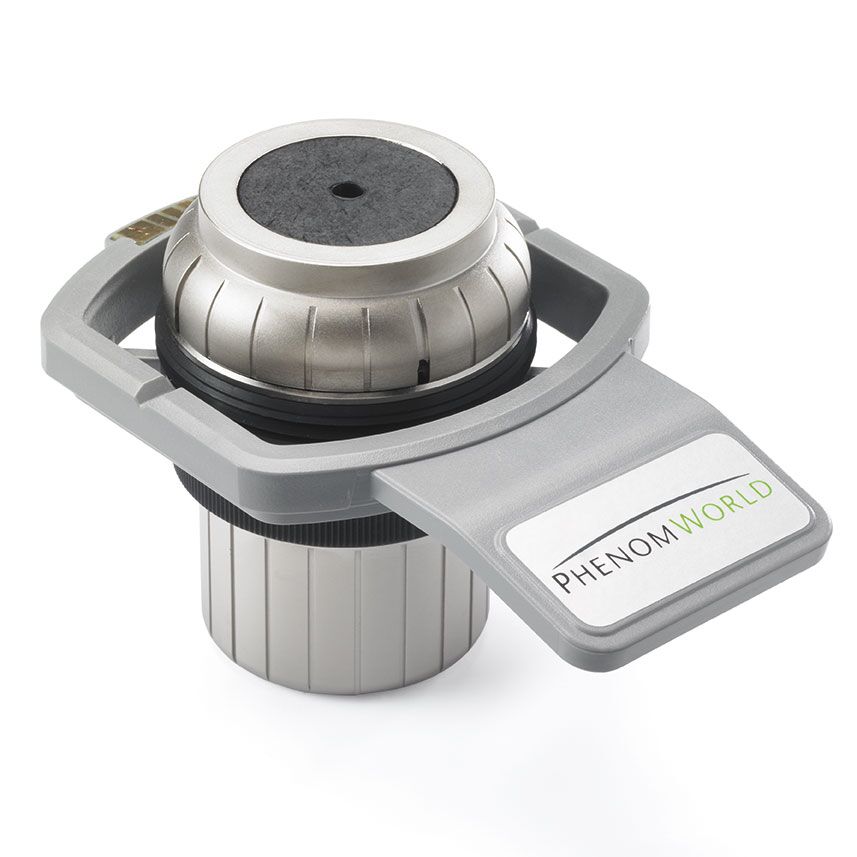

Charge reduction sample holder

Designed to reduce charging and eliminate extra sample preparation (coating) for non-conductive samples such as paper, organic material, glass… etc

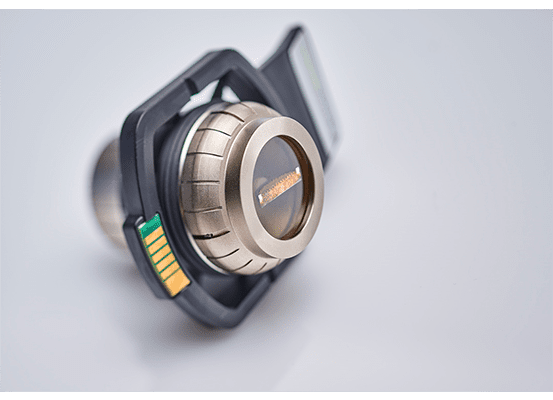

Metallurgical sample holder

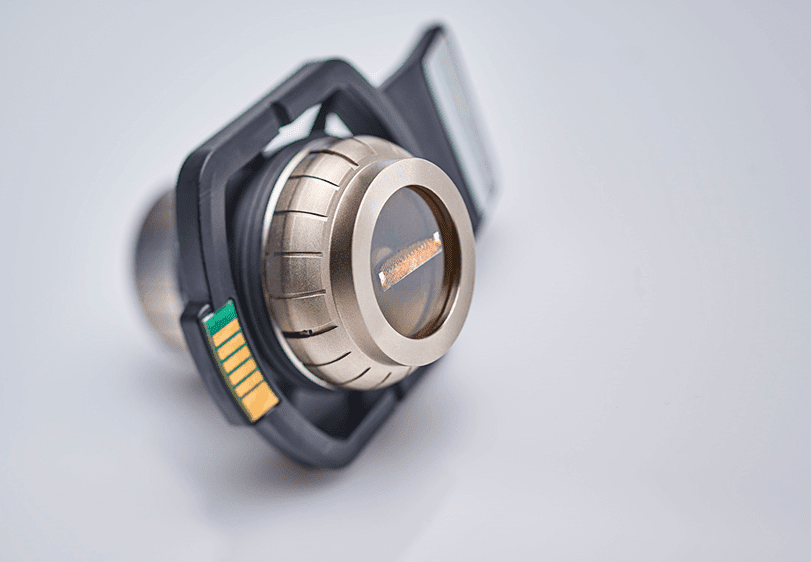

Designed to support resin-mounted samples for metallurgy or when working with inserts. Charge reduction version also available for non-conductive samples.

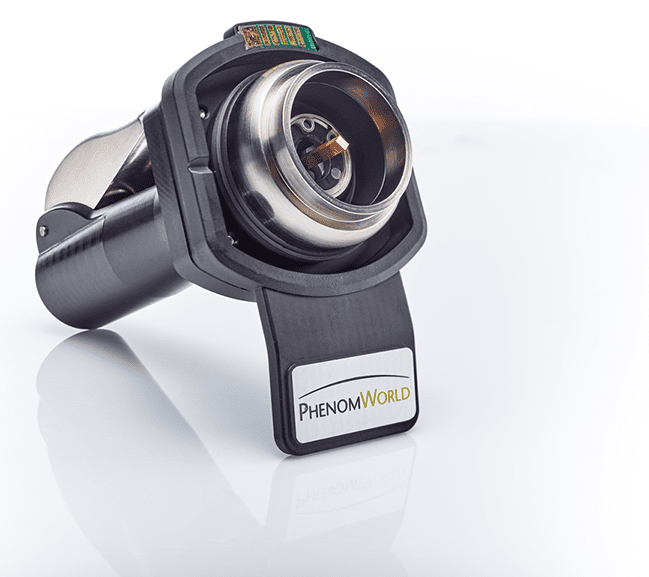

Micro tool and tilt-rotation sample holder

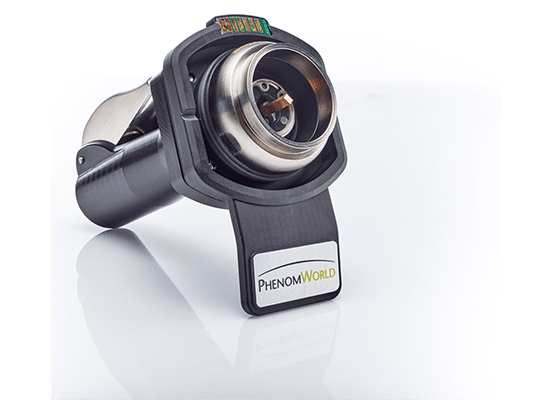

Suitable for imaging long objects such as drill bits, milling tools and needles.

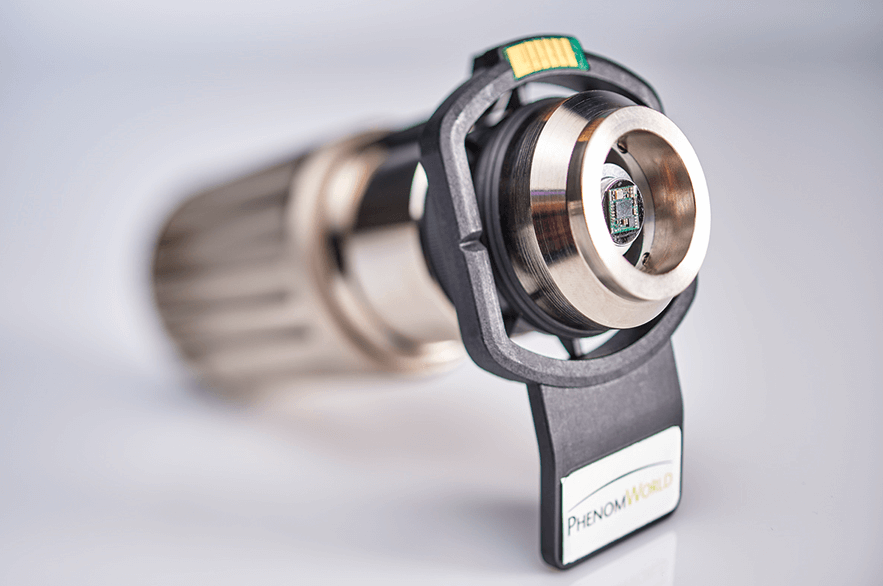

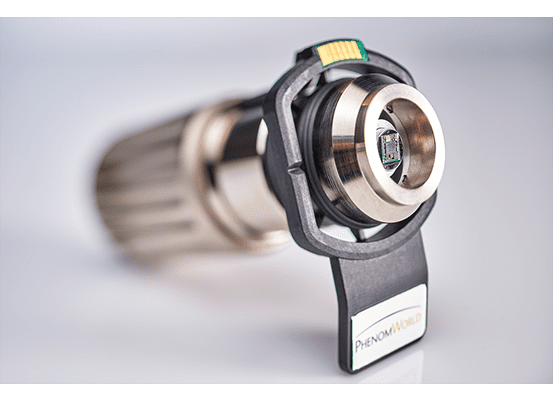

Motorized tilt and rotation sample holder

Enables a unique 3D image of your sample by allowing the analysis from all visible sides.

Temperature controlled sample holder

Allows the study of vacuum sensitive and fragile samples such as biological, food or organic coatings. Temperature can be controlled from -25°C to +50°C.

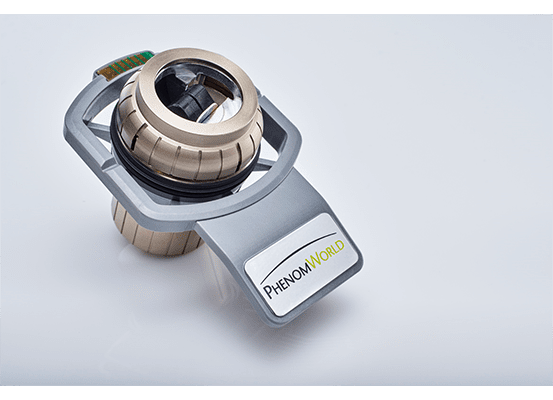

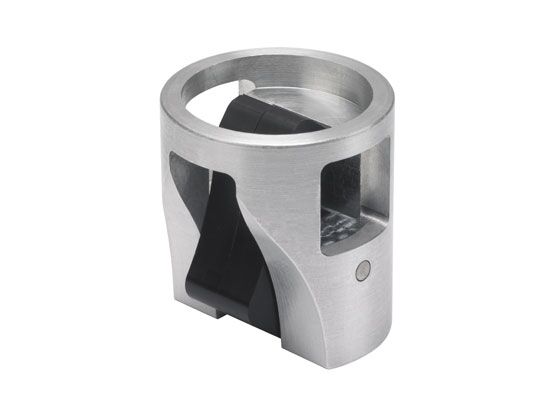

X-view Insert

Provides fast, easy clamping without the need for screws and is ideal for cross sectional imaging of coatings and multilayer samples.

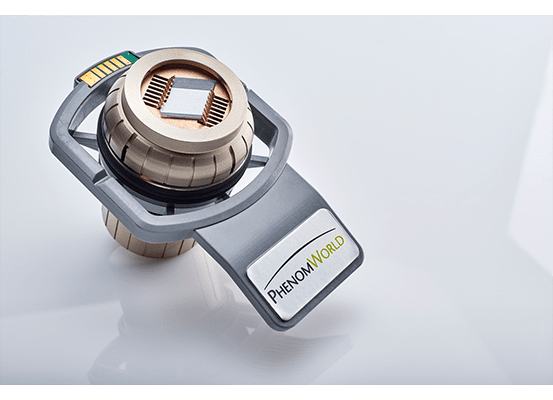

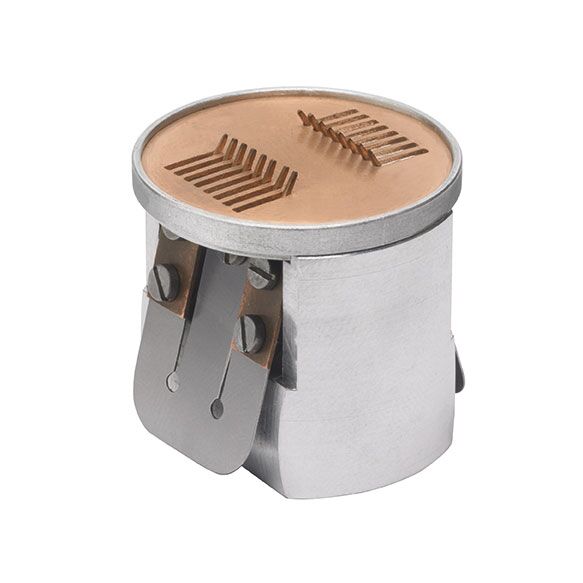

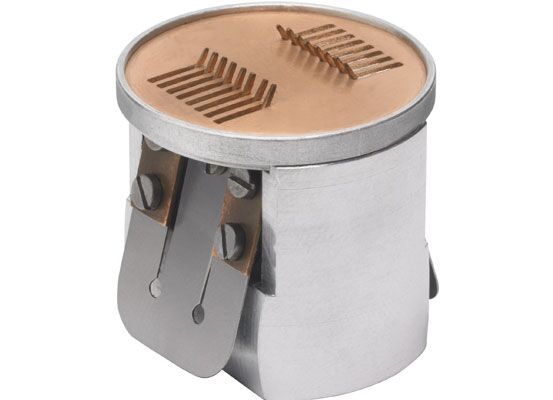

Micro-electronics insert

Provides a unique clamping mechanism for imaging semi conductor, microelectronics or solar cells.

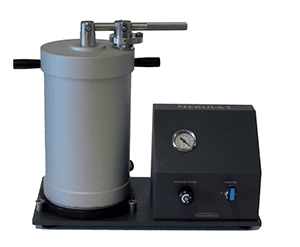

Nebula

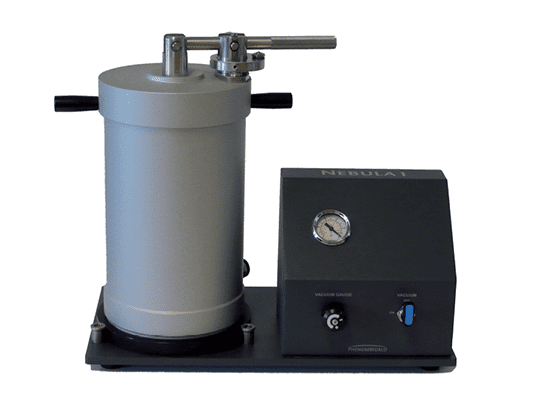

Provides uniform dry powder dispersion on SEM pin stubs while protecting fragile particle structures.
