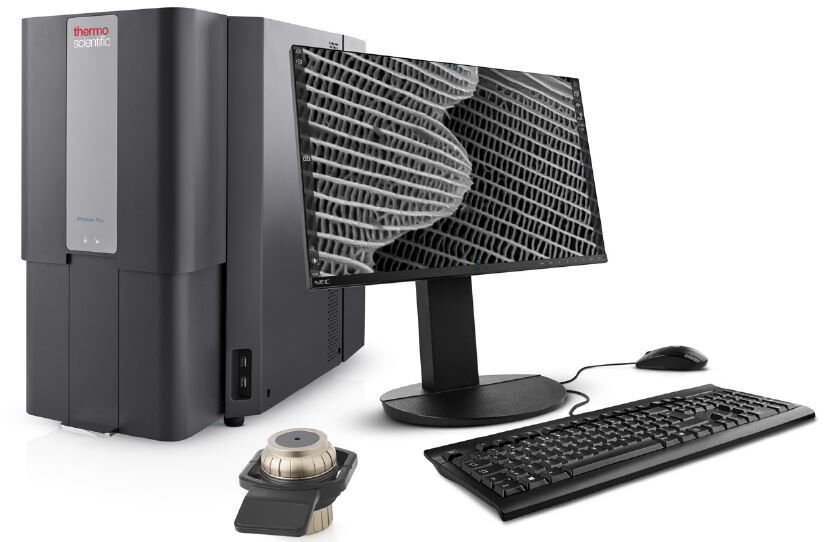

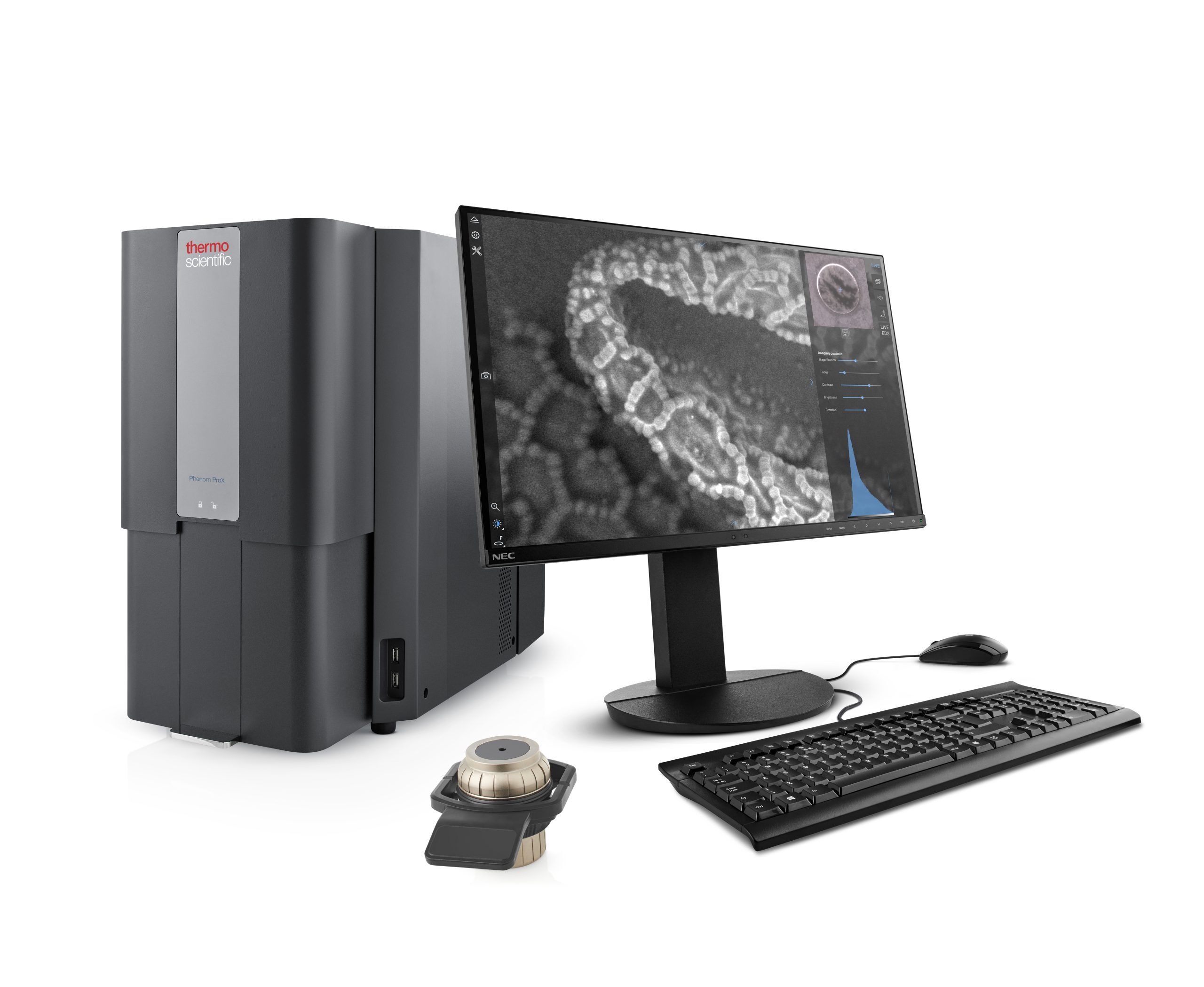

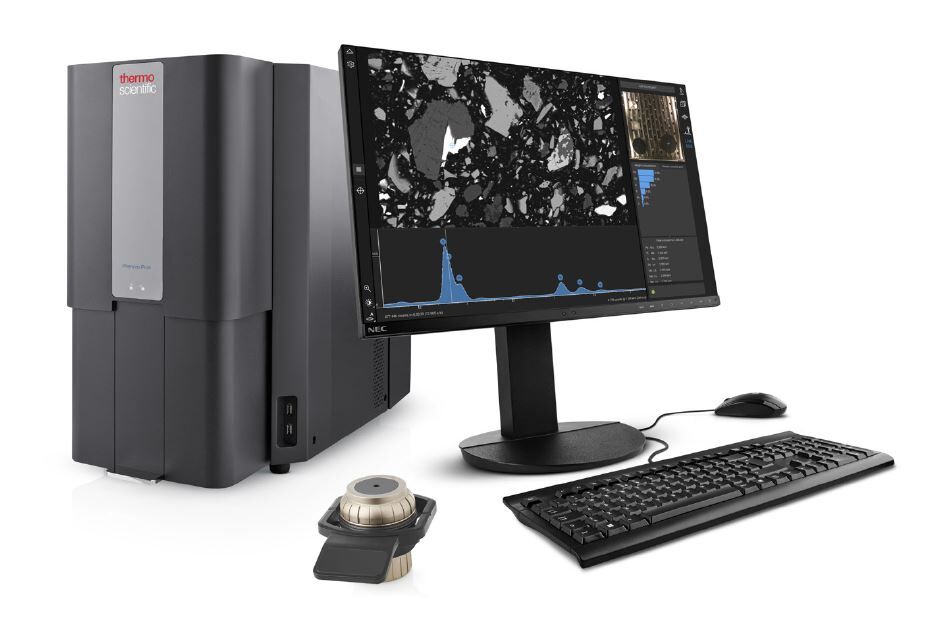

Phenom ProX G6 Desktop Scanning Electron Microscope
Phenom ProX G6 is an all-in- one desktop Scanning Electron Microscope (SEM) that is superfast and easy to use and provides high resolution imaging with elemental analysis.
Phenom ProX G6 Desktop Scanning Electron Microscope
Phenom ProX G6 is an all-in- one desktop Scanning Electron Microscope (SEM) that is superfast and easy to use and provides high resolution imaging with elemental analysis.
Manufacturer | Thermo Scientific |
---|---|
Product Series | Phenom Desktop SEM |
Measurement principle | Electron Microscopy SEM & Elemental Mapping |
Application | Elemental Mapping (EDS), Scanning Electron Microscopy |

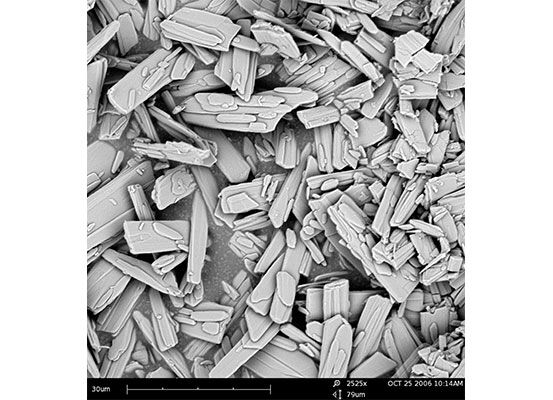

Sample type | Materials, metals, pharmaceuticals, chemical, polymers, forensics |
SEM magnification | 160-350,000x |
Resolution | <6nm (sed) | 6nm>
Optical magnification | 20-134x |
Sample size | Up to 32mm |
Load to image time | <30 sec |
Product Overview

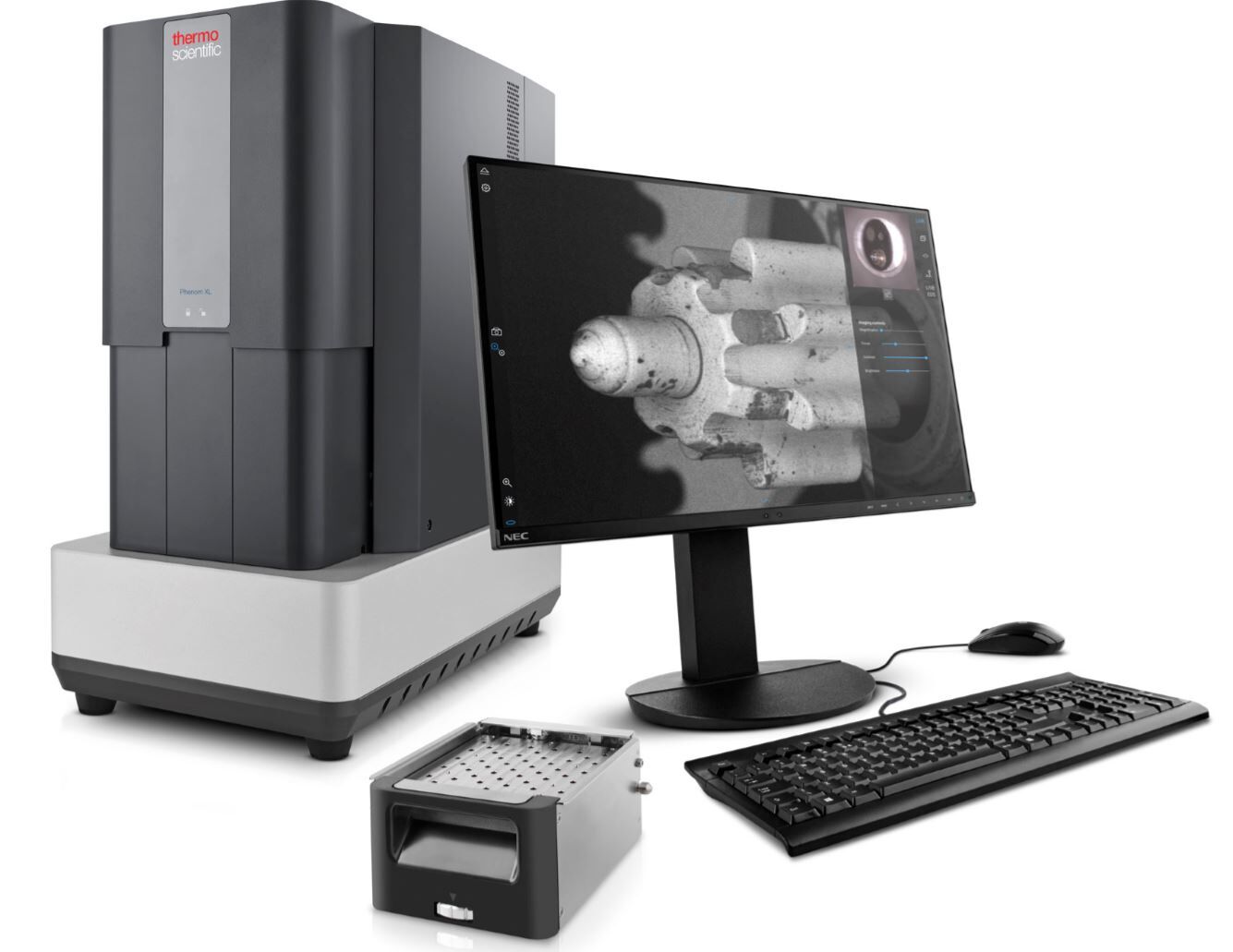

Phenom ProX G6 desktop Scanning Electron Microscope (SEM) is based on the new 6th generation Phenom desktop SEM platform and is a high-performance SEM for imaging and analysis.

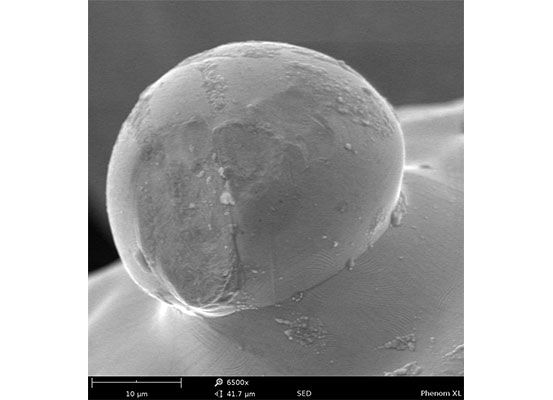

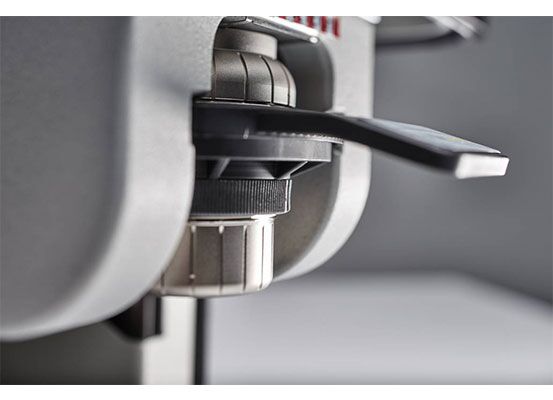

It is designed for extreme ease of use and enables the fastest imaging of samples. The proprietary venting/loading mechanism supports the highest throughput and ensures a time-to- image of less than 30 seconds. The unique optical navigation camera displays a view of the entire sample and allows the user to move to any spot on the sample with just a single click. The long-life CeB 6 electron source in combination with the four-segment Backscatter detector (BSD) yields sharp images together with chemical contrast information. A secondary electron detector (SED) is optionally available on the Phenom ProX. The SED collects low energy electrons from the top surface layer of the sample making it ideal for studying surfaces of micro structures, nano structures or particles.
A key feature of the Phenom ProX G6 is its easy-to-use, intuitive user interface (UI). Based on the proven ease-of-use technology already applied in the series, the workflow for the analysis software is now integrated meaning users can view images and perform analysis simultaneously on a single screen. Operating the SEM has been made easier via the interactive databar and overlay structure. The interface enables both existing and new users to quickly become familiar with the system with less training.

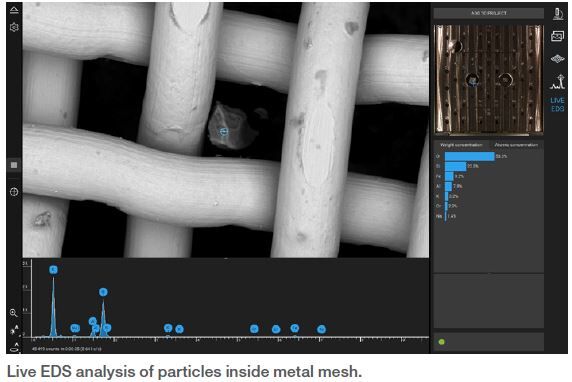

Unlike other systems the Phenom has fully integrated X-Ray analysis (Energy Dispersive Spectrometer, EDS) that allows the user to quickly identify and assess the distribution of elements in a sample. Additional sample holders allow for both conductive and non-conductive samples to analysed without the need for coating. Options are also available for sample tilting and cooling.
Further analysis is provided using optional ProSuite software that includes ParticleMetric, PoroMetric, FiberMetric and 3D Roughness Reconstruction.
The Phenom ProX covers a wide range of applications such as Forensic investigation, Material characterisation, Metallurgy analysis, Process control, Pharmaceutical and Industrial research and more.
The Phenom ProX is a user friendly and affordable tool that bridges the gap between the optical microscope and ultra-high resolution microscopes.
- Benefits
- Applications
- Accessories
Benefits
All in one imaging and analysis
Compact desktop SEM with X-ray (EDS) analysis that needs little space and no extra facilities. Sample structures can be physically examined and their elemental composition determined. Offload work from your floor-model SEMs and expand research capabilities.
Super-fast
After loading the sample an instant optical image is received followed by an electron image in < 30 seconds.
Ease of use with “never lost” sample navigation
Equipped with an optical colour microscope the user can swiftly navigate to any region of interest with just a single click and keep the image overview of the sample.
Low maintenance
The long lifetime, high brightness thermionic source (CeB 6 ) enables extremely stable operation and has a typical operational lifetime of >1500 hours, which is ideal for maximum useability, serviceability and uptime.
Multiple detectors for additional information

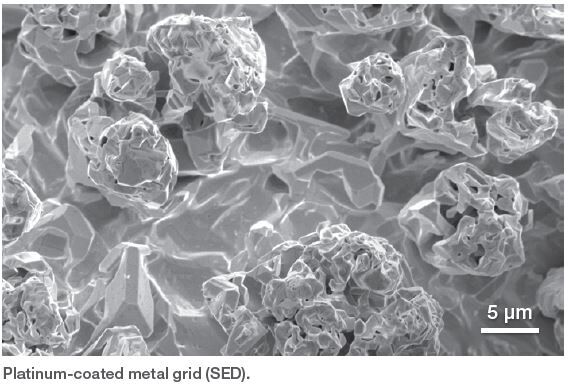

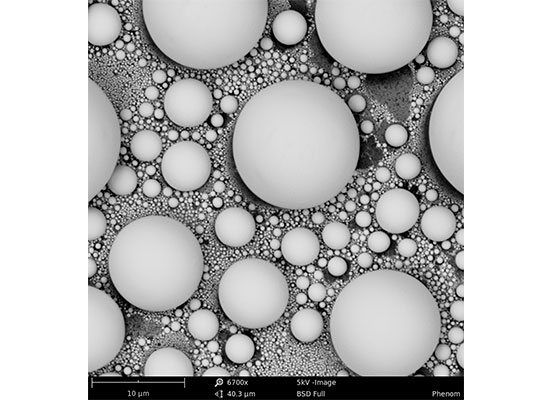

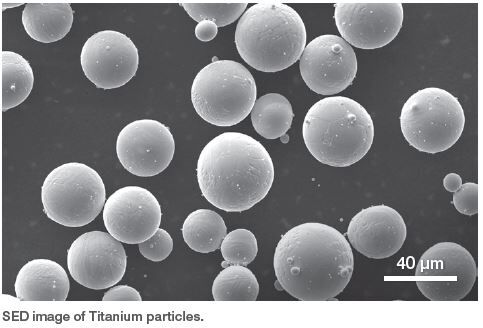

Back-Scatter Detector (BSD) yields sharp images and provides chemical contrast information. An optional Secondary Electron Detector (SED) enables surface sensitive imaging.

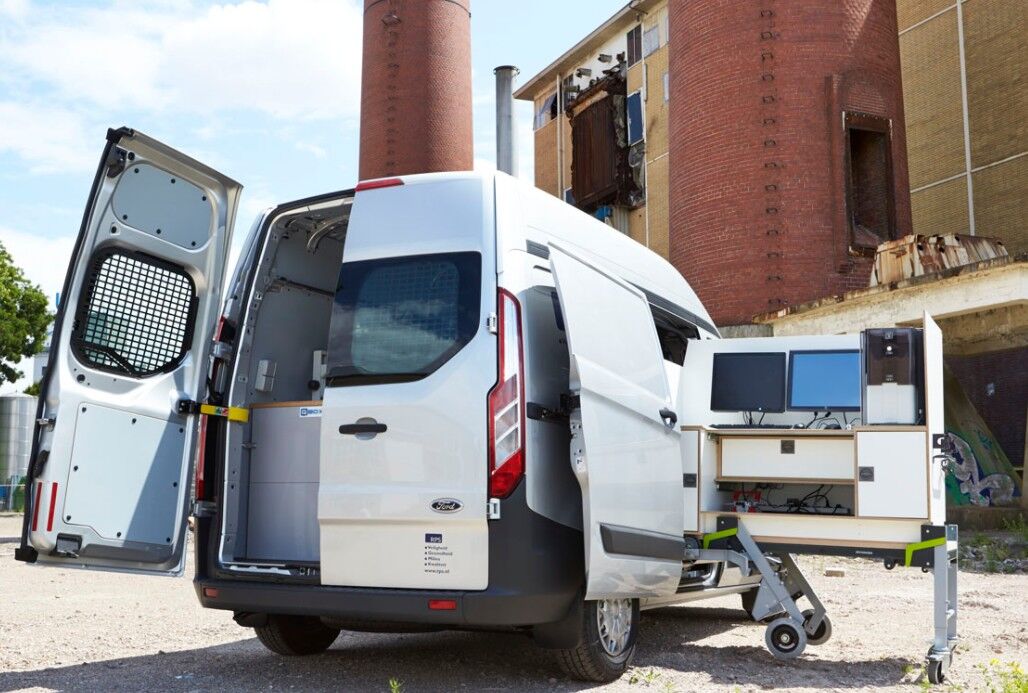

Mobile SEM configuration
The Phenom ProX desktop SEM allows for SEM imaging on a mobile platform. It can be used in remote locations for fast and accurate investigations and analysis onsite. The system can be moved between project locations with maximum up time, creating efficiency for the user, and minimising waiting time for customers.
Intuitive software

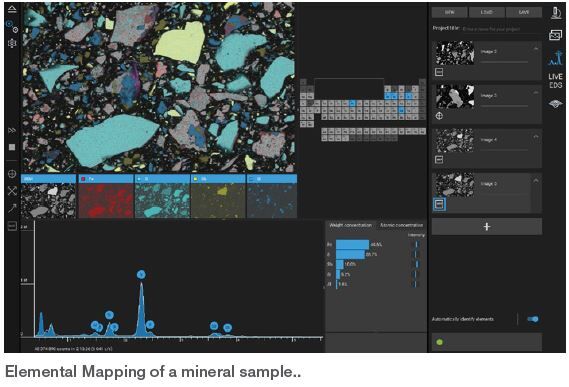

The distribution of elements can be studied using Point analysis, Elemental Mapping and Line Scan. ProSuite software includes applications such as ParticleMetric, PoroMetric, FiberMetric and 3D Roughness Reconstruction.
Make Product EnquiryApplications
- Material sciences – observe and analyse surfaces, compounds and particles
- Industrial manufacturing – paints & coatings, construction materials, filtration, automotive and aerospace engineering

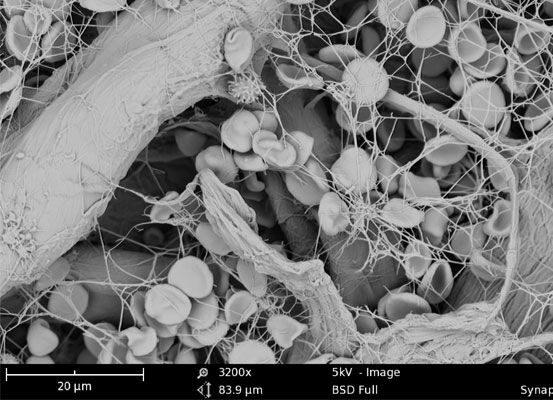

- Life sciences – Biomedical, food, microbiology, cell biology
- Forensics – Crime scene investigation, gunshot residue, traffic accidents
- Electronics – component PCBs, MEMS, Semiconductor and data storage
- Earth Sciences –Environment, minerals, Paleontology
- Education – inspire young students to see the world 10 times smaller than the wavelength of visible light
Accessories
Standard sample holder
Suitable for most samples up to 25mm diameter and 30mm height, mounted on standard sample pin stubs.

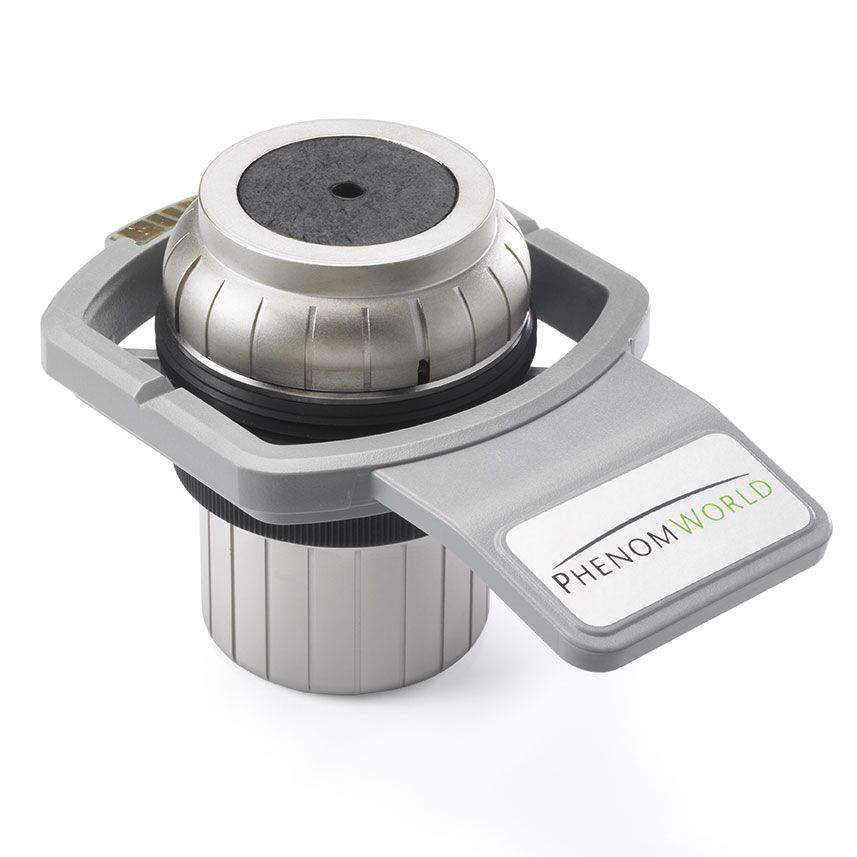

Charge reduction sample holder
Designed to reduce charging and eliminate extra sample preparation (coating) for non-conductive samples such as paper, organic material, glass… etc

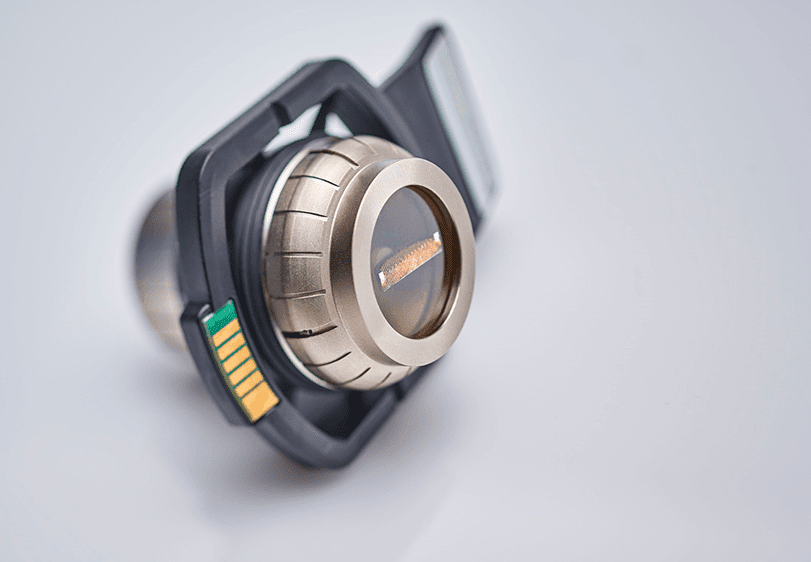

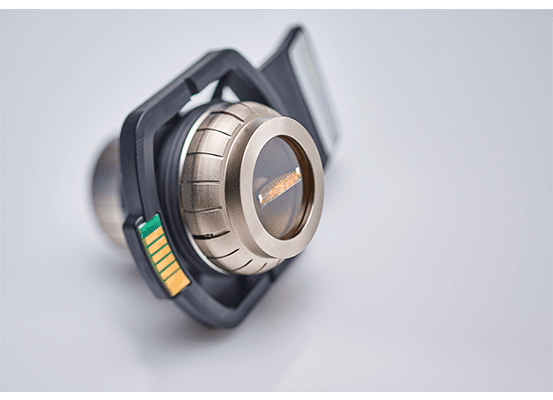

Metallurgical sample holder
Designed to support resin-mounted samples for metallurgy or when working with inserts. Charge reduction version also available for non-conductive samples.

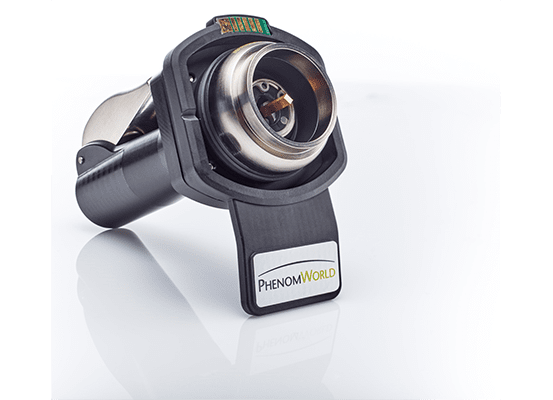

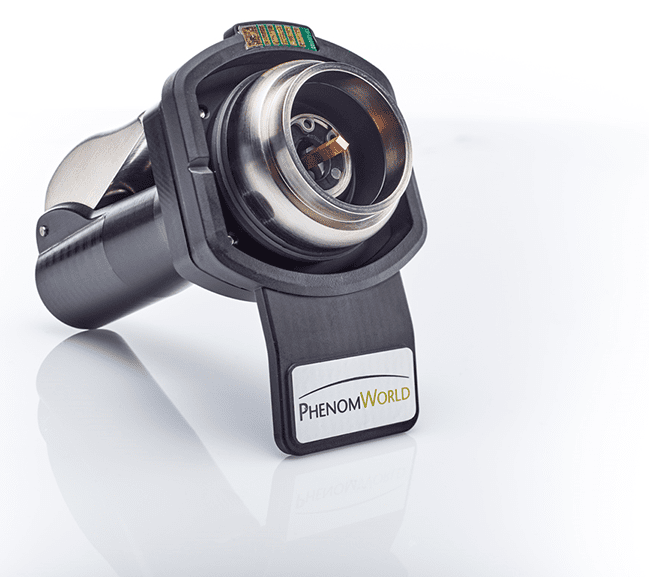

Micro tool and tilt-rotation sample holder
Suitable for imaging long objects such as drill bits, milling tools and needles.

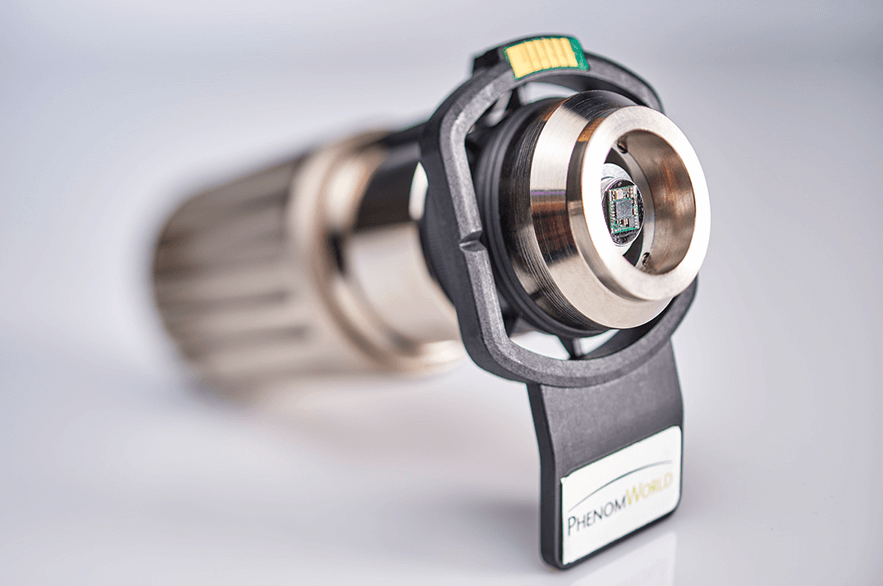

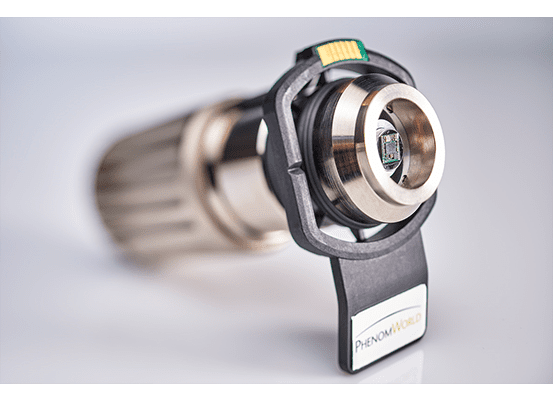

Motorized tilt and rotation sample holder
Enables a unique 3D image of your sample by allowing the analysis from all visible sides.

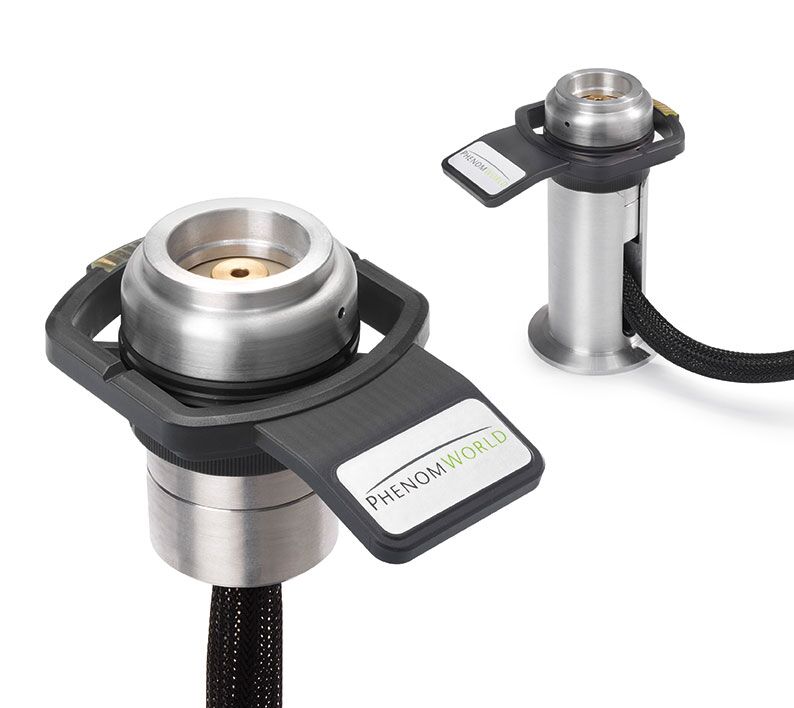

Temperature controlled sample holder
Allows the study of vacuum sensitive and fragile samples such as biological, food or organic coatings. Temperature can be controlled from -25°C to +50°C.

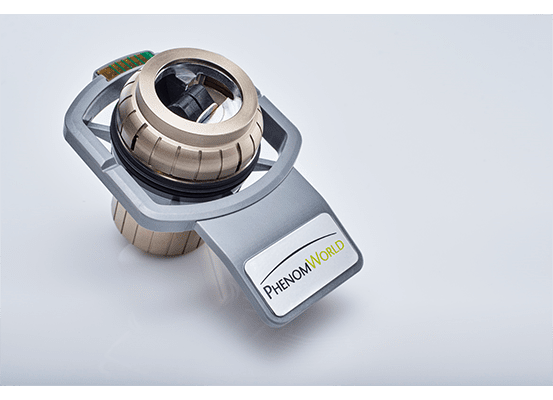

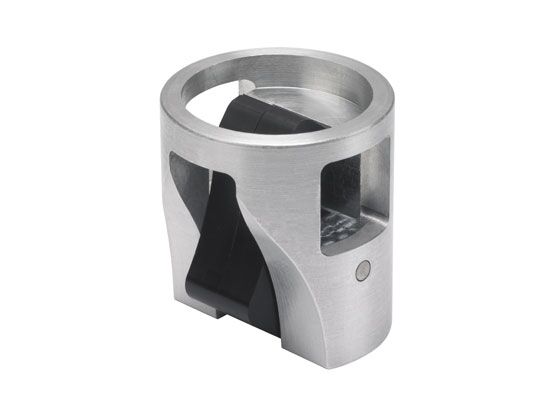

X-view Insert
Provides fast, easy clamping without the need for screws and is ideal for cross sectional imaging of coatings and multilayer samples.

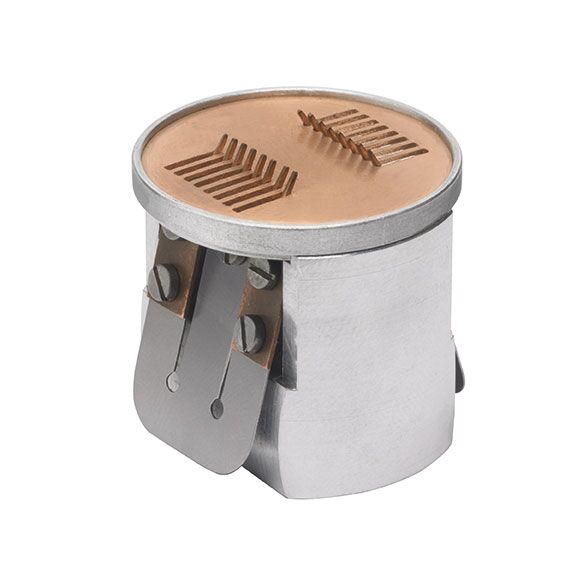

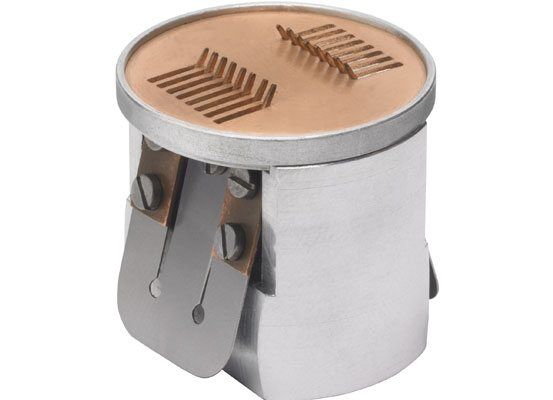

Micro-electronics insert
Provides a unique clamping mechanism for imaging semi conductor, microelectronics or solar cells.

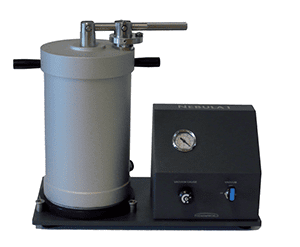

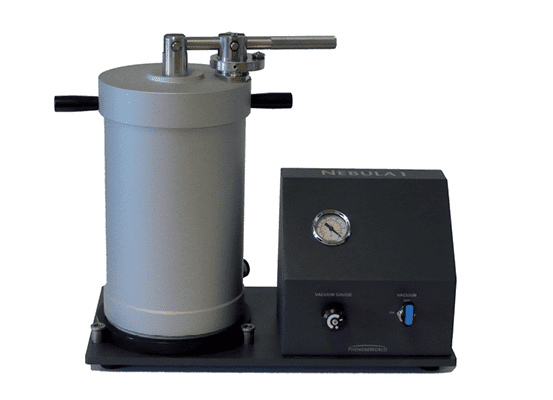

Nebula
Provides uniform dry powder dispersion on SEM pin stubs while protecting fragile particle structures.
