LUNA-FX7 Automated cell counter

LUNA-FX7 Automated cell counter is our most powerful cell counter with autofocusing, dual fluorescence and brightfield detection plus 21 CFR PART 11 compliance.

LUNA-FX7 Automated cell counter

LUNA-FX7 Automated cell counter is our most powerful cell counter with autofocusing, dual fluorescence and brightfield detection plus 21 CFR PART 11 compliance.

Manufacturer Logos Biosystems
Product Series LUNA
Measurement principle Microscopy - Cell image analysis
Application Live cell image analysis
Cell size range1 to 90 μm
OpticsBrightfield, Dual Fluorescence
Ex/Em wavelength470±20 nm/ 530±25 nm, 600 nm

Product Overview

LUNA-FX7 is an automated, high speed cell counter that provides unmatched accuracy in an easy-to-use workflow.

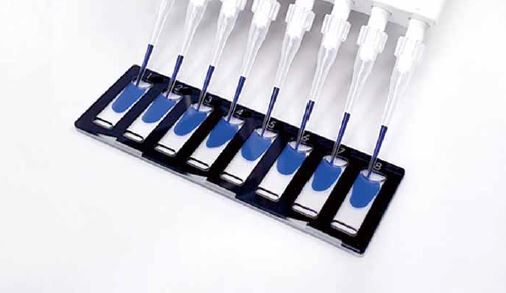

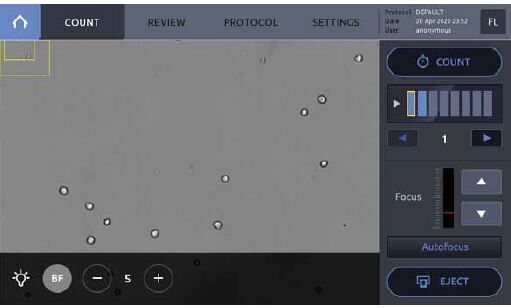

The intuitive user interface provides rapid, accurate and reliable results in three easy steps: LOAD – COUNT – READ.

LUNA-FX7 gives users the flexibility to analyse up to 8 eight samples simultaneously by using the 8-channel slide, with a maximum counting volume of 5 µL in the single-channel slide (10 times that of conventional cell counters). Using brightfield and dual fluorescent detection, precision autofocus, advanced optics and a clever declustering algorithm, the LUNA-FX7 delivers reliable results for almost every cell type. Its broad cell detection range, 1 x 10^4 cells/mL to 5 x 10^7 cells/mL eliminates the need to dilute or concentrate samples, making the system suitable for diverse cell counting applications including single-cell sequencing and CAR-T cell therapy.

To help monitor and optimise bioprocesses, the LUNA-FX7 has unique built-in quality control features with precision validation slides and is 21 CFR Part 11 ready. Cell number concentrations and viabilities are provided with a single tap on the screen. Multiple devices in various locations can be accessed remotely using complementary CountWire software.

The LUNA family of automated counters has been awarded a Platinum seal of quality from SelectScience in recognition of outstanding feedback received from scientists globally – one of just 6 winners since the awards were launched in 2017!



  • DEMONSTRATION VIDEO
  • BENEFITS
  • APPLICATIONS

DEMONSTRATION VIDEO

BENEFITS

  • East-to-use, Accurate, High speed cell counting
  • Advanced optics and intelligent declustering algorithm
  • High speed precision autofocus
  • Multiple slide options (8-, 3-, 2-, 1-chamber formats)
  • Data transfer via Wi-Fi, USB device, or Ethernet
  • COUNTWIRE software compliant with 21CRF PART11/GMP requirements
  • New bioprocess monitoring feature and validation slide for QC
  • Platinum seal of quality from SelectScience

APPLICATIONS

LUNA-FX7 has a broad cell detection range, 1 x 10^4 cells/mL to 5 x 10^7 cells/mL that eliminates the need to dilute or concentrate samples, making it suitable for diverse cell counting applications including single-cell sequencing and CAR-T cell therapy.

Monitoring CAR-T Cell Therapy Production Using the LUNA-FX7

Rapid evaluation of PBMC counting and viability

The Counting Accuracy of the LUNA-FX7™ Automated Cell Counter

Cell Lines validated
On the LUNA-FX7 Automated cell counter
Cell Type Animal Organ
3T3-L1 Mouse Embryo
A549 Human Lung
AsPC-1 Human Pancreas
BAEC Cow Aorta
Colon26L5 Mouse Colon Carcinoma
DLD-1 Human Colon
H1975 Human Lung
HCT116 Human Colon
Hek-293 Human Embryonic Kidney
HL60 Human Peripheral Blood
J774A.1 Mouse Ascites
RAW264.7 Mouse Ascites
SY5Y Human Bone marrow
U2OS Human Bone
U937 Human Lymphocyte
K562 Human Bone marrow
PBMC Human Blood
M1 Mouse Myeloblast
