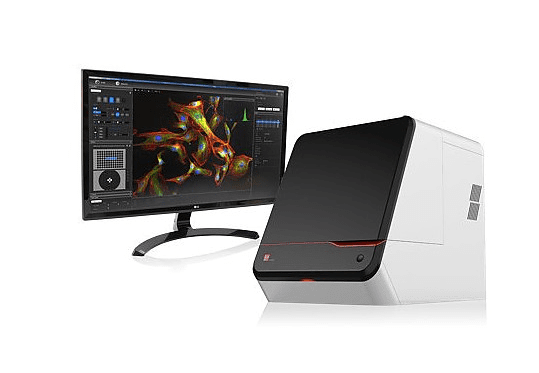

CELENA X Auto High Content Cell Imaging System

Automated high content cell imaging and analysis with multicolour fluorescence for drug discovery and cell biology

CELENA X Auto High Content Cell Imaging System

Automated high content cell imaging and analysis with multicolour fluorescence for drug discovery and cell biology

Manufacturer Logos Biosystems
Product SeriesLogos Biosystems Celena
Measurement principleMicroscopy - Cell image analysis
ApplicationLive cell image analysis
Imaging modes4-channel fluorescence, brightfield, phase contrast, colour brightfield
CameraMonochrome and colour CMOS
StageMotorised XYZ stage
AutofocusLaser Autofocus

Product Overview

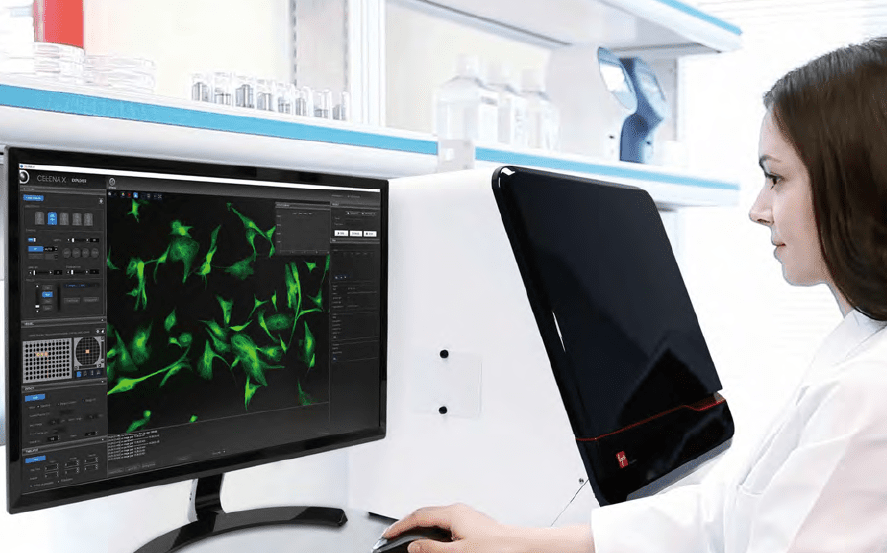

The CELENA-X is is a fully automated digital imaging system that makes it easy to set up a time lapse imaging sequence for lengthy cell-based assays. This fully integrated system with onstage incubator allows users to quickly and easily set up high-content imaging experiments to measure phenotypes of interest objectively, quantitatively and reproducibly within a precisely controlled environment.

The CELENA X can be customised with a range of interchangeable LED filter cubes, high quality dual cameras and various objectives to meet event the most demanding of cell imaging needs.

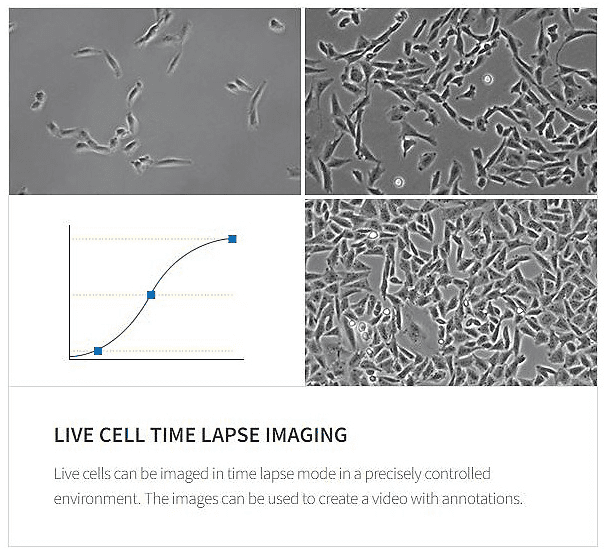

Customised workflows can be created that will automatically focus in on and capture each specified field in each specified well with the preset imaging conditions. Live cells can be monitored with the time lapse function or the growth monitor to produce high content time lapse images and videos.

  • BENEFITS
  • APPLICATIONS

BENEFITS

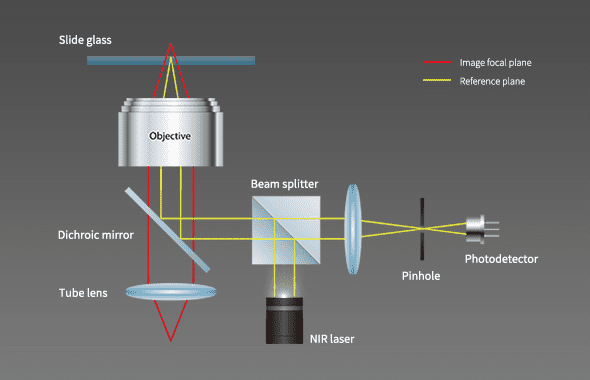

LASER AUTOFOCUS

  • Rapid and reproducible focusing
  • Minimised photoxicity and photobleaching

FULLY AUTOMATED PLATE AND SLIDE IMAGING

  • Ideal for kinetic live cell assays, fixed cell assays and slide scanning
  • Motorized XYZ stage, filter cube stage, and objective turret

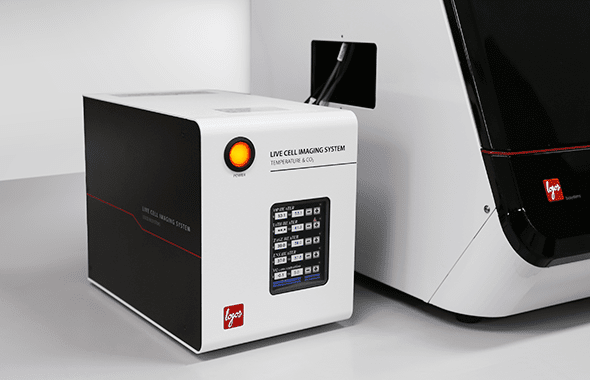

LIVE CELL ASSAY SUPPORT

  • Onstage incubation system for a variety of experiments in physiological and non-physiological conditions

FOUR IMAGING MODES

  • Fluorescence imaging in four channels, brightfield, color brightfield, and phase contrast imaging

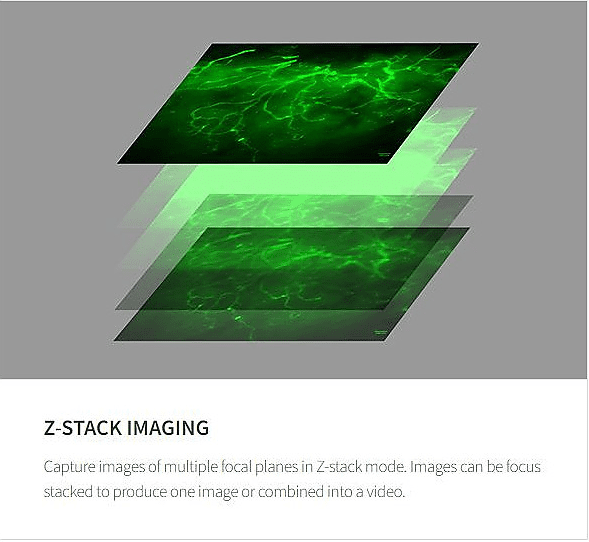

  • Z-stack and time lapse capabilities
  • Interchangeable filter cubes and objectives (Olympus and Zeiss compatible)

POWERFUL, EASY-TO-USE USER INTERFACE

  • Simple setup of imaging protocols
  • Seamless integration of imaging and data analysis processes

CUSTOMISABLE HIGH CONTENT ANALYSIS

  • Create and customise image analysis projects
  • Quantitatively analyse multiple image-based phenotypes

APPLICATIONS

Apoptosis
Autophagy
Cell Cycle
Cell growth/Proliferation
Cell counting
Cell viability/toxicity
Cell migration
Cell morphology
Co-localisation
Confluency
Cytotoxicity
Drug discovery
Histology
Immunofluorescence
NF-kB translocation
Organoid/spheroid morphology
Transfection efficiency
