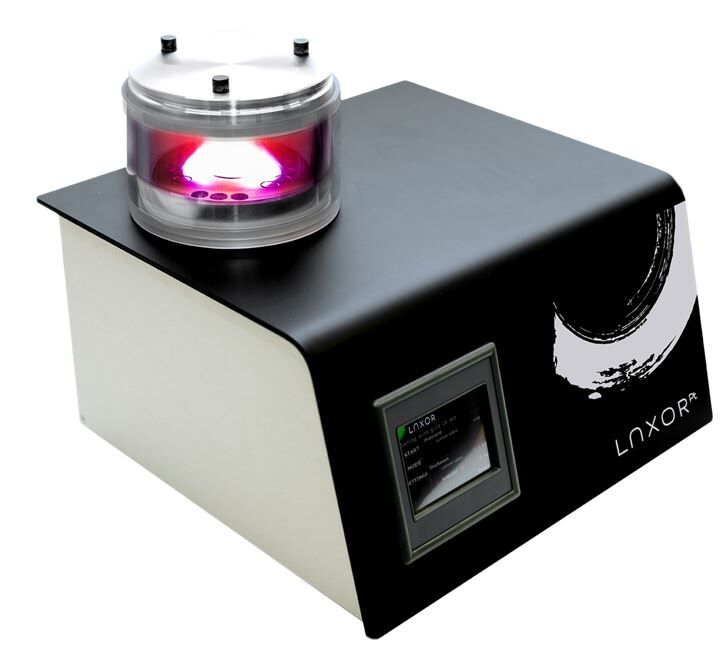

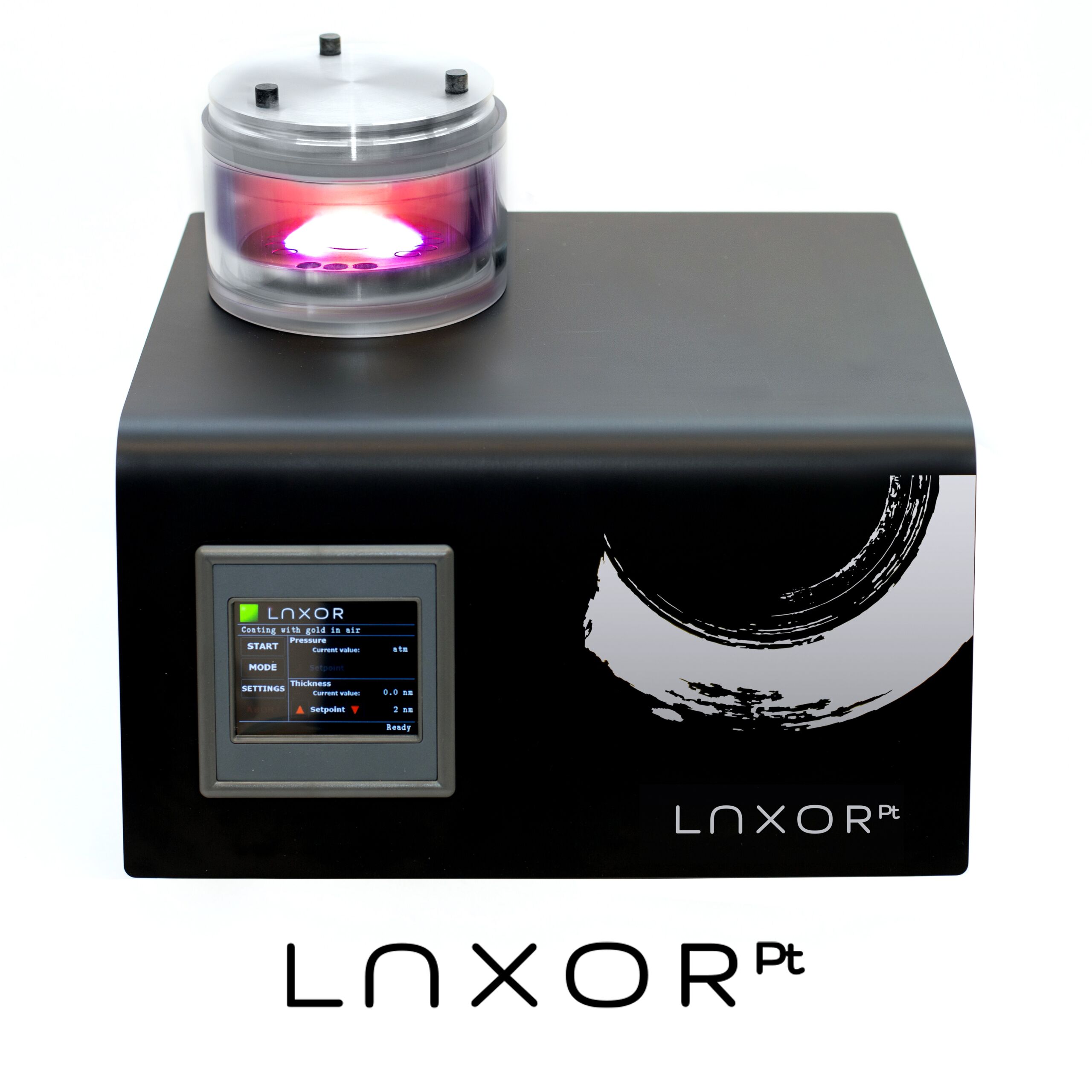

LUXOR Pt coater

LUXOR Pt is an advanced fully automated sputter coater used to apply an extremely uniform, thin and homogeneous platinum or gold layer to samples optimised for FEG-SEM imaging.

LUXOR Pt coater

LUXOR Pt is an advanced fully automated sputter coater used to apply an extremely uniform, thin and homogeneous platinum or gold layer to samples optimised for FEG-SEM imaging.

Manufacturer Aptco Technologies
Product Series LUXOR
Measurement principle Electron Microscopy SEM & Elemental Mapping
Application Scanning Electron Microscopy
Sample typeAu coating in air or argon, Pt in Argon
Gold/Platinum layer thickness1 to 100 nm (continuously selectable)
Maximum capacity6 samples
Average coating time6 minutes

Product Overview

The LUXOR Pt is a fully automated metal coater that creates an extremely uniform, thin and homogeneous Gold or Platinum layer on your non-conductive material. Renowned for their speedy operation and ease of use, the LUXOR applies a fine gold coating from 1 to 100 nm thickness in a controlled and accurate manner allowing users to get the very best SEM imaging quality from samples.

The LUXOR Pt is typically used for high resolution FEG-SEM imaging applications up to 1,000,000x magnification where sample charging might be an issue. Metal coatings created using LUXOR strongly reduce sample charging by increasing conduction. They improve secondary electron emission, allowing the microscope’s detectors to pick up more hi-res imaging details. Metal coatings also reduce beam penetration, which significantly improves edge resolution and prevent sensitive samples from being damaged.

The unique ‘upside down’ design of the LUXOR Pt makes sure that loose particles will be removed during the coating process which helps to protect the SEM from contamination and damage.

  • Demonstration video
  • Benefits
  • Applications
  • Accessories

Demonstration video

Benefits

UNIQUE A² TECHNOLOGY

Generate remarkably uniform, thin and homogeneous gold or platinum coatings for improved SEM analysis.

UPSIDE DOWN DESIGN

Process up to six samples at once using the unique design. Allows for easy, accessible sample loading and ensures any loose particles are removed during the coating process.

COMPLETELY AUTOMATED

Highly innovative, fully automated metal coating system applies a fine grain platinum or gold coating from 1 to 100 nm thickness. Built in touch screen – simply set thickness and push start.

TRIPLE FUNCTIONALITY

More than just a gold or Platinum coater. It also offers a preset vacuum level mode to protect sensitive samples and provides a time-based sample drying mode.

ROBUST DESIGN, MADE IN GERMANY
With a modest footprint and elegant appearance, the LUXOR Pt is a robust, sturdy system designed to be used intensively and run hassle-free for the life of the system.

Applications

LUXOR’s highly advanced metal coaters (Au/Pt) are extensively used for many applications within the field of materials science – such as pharma, life science,
electronics, polymers, ceramics, as well as for academic purposes.

METAL COATING OF A FACE MASK

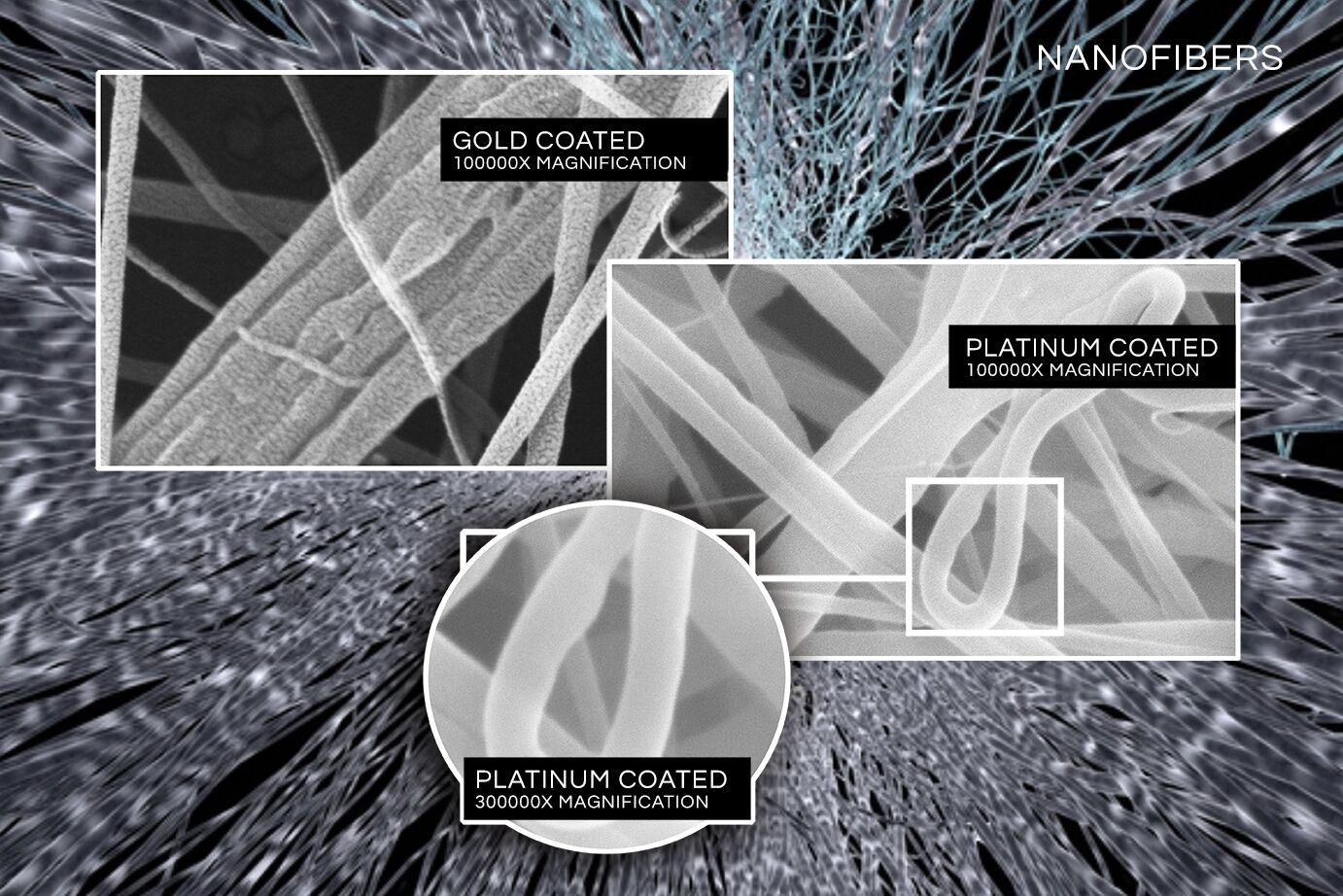

METAL COATING OF NANOFIBERS

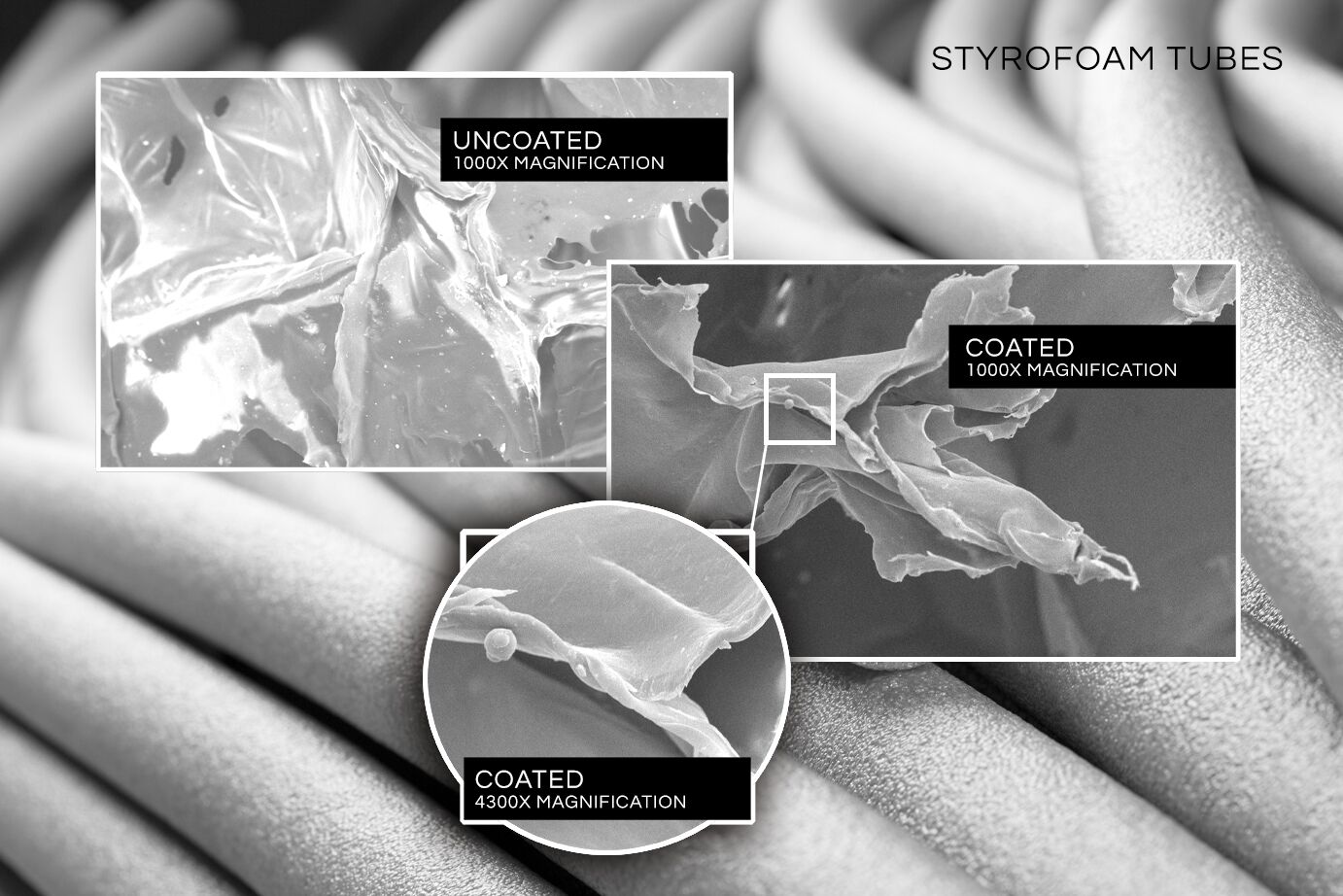

METAL COATING OF STYROFOAM

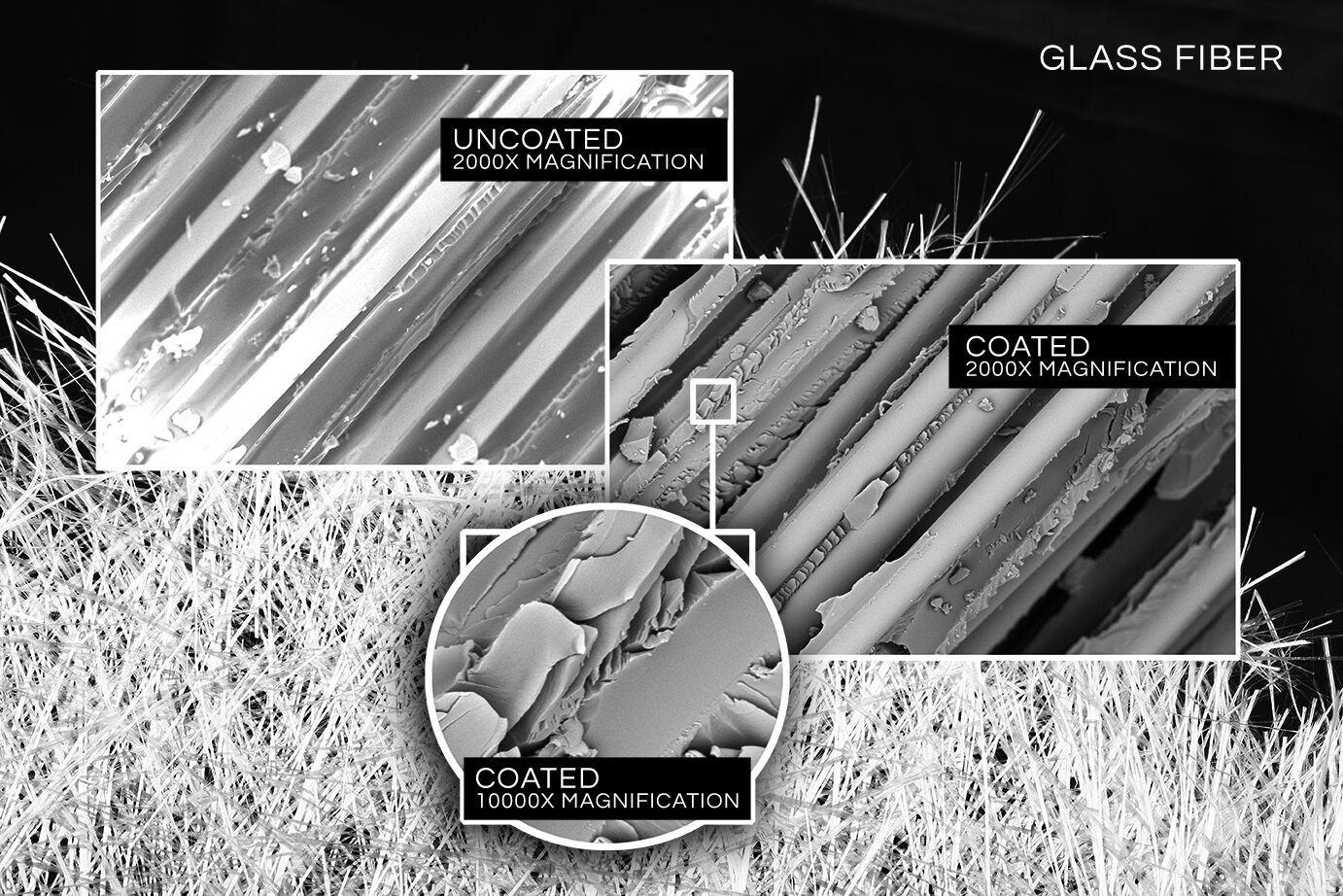

METAL COATING OF GLASS FIBERS

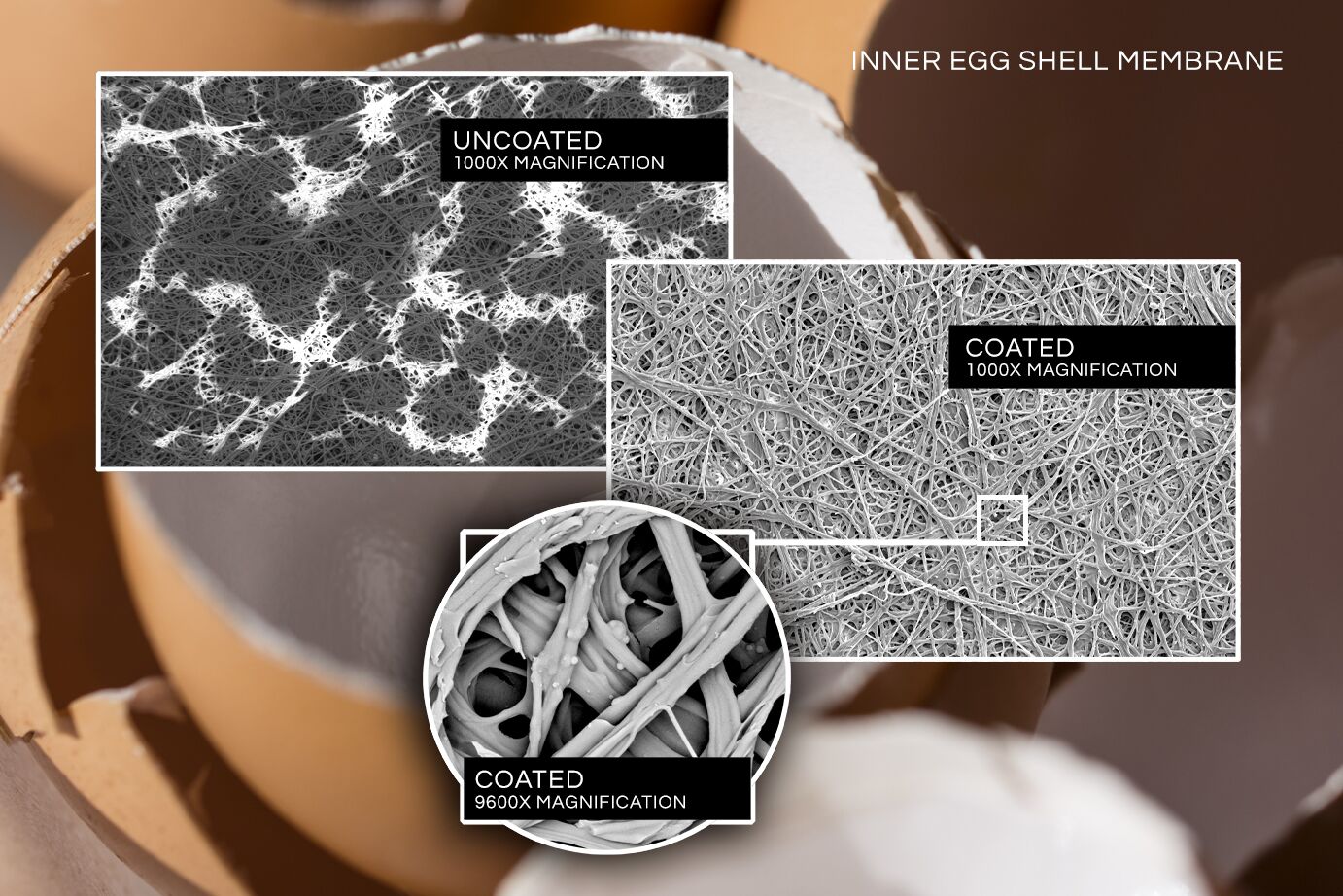

METAL COATING OF BIO SAMPLES

METAL COATING OF DIATOMS

Accessories

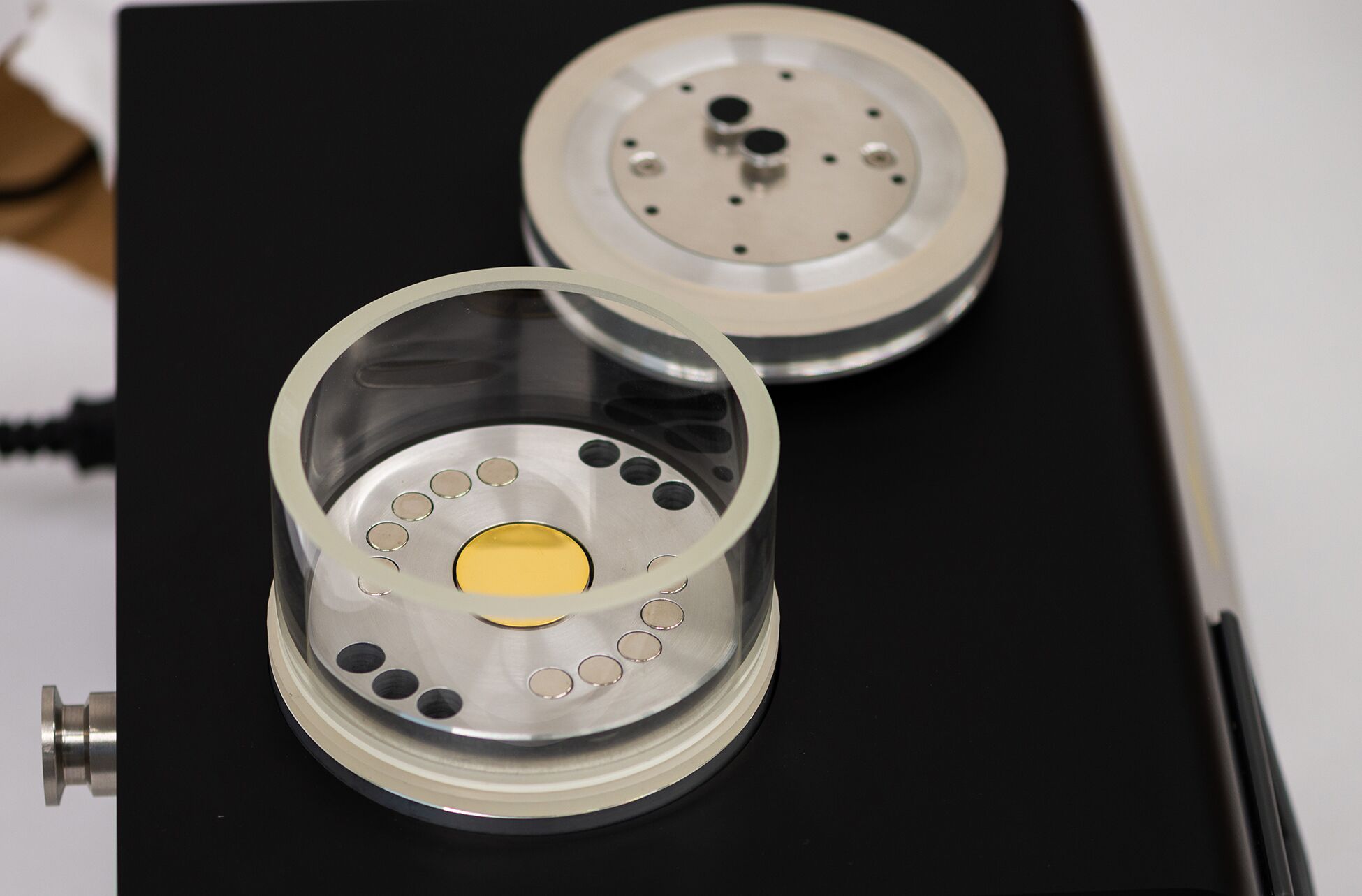

STANDARD SAMPLE PREPARATION STATION
The LUXOR standard sample preparation station can simultaneously hold up to 6 x 12 mm sample stubs for metal coating. It is an easily accessible sample preparation table with 3 elastomer feet that also acts as the lid for the coating reactor.

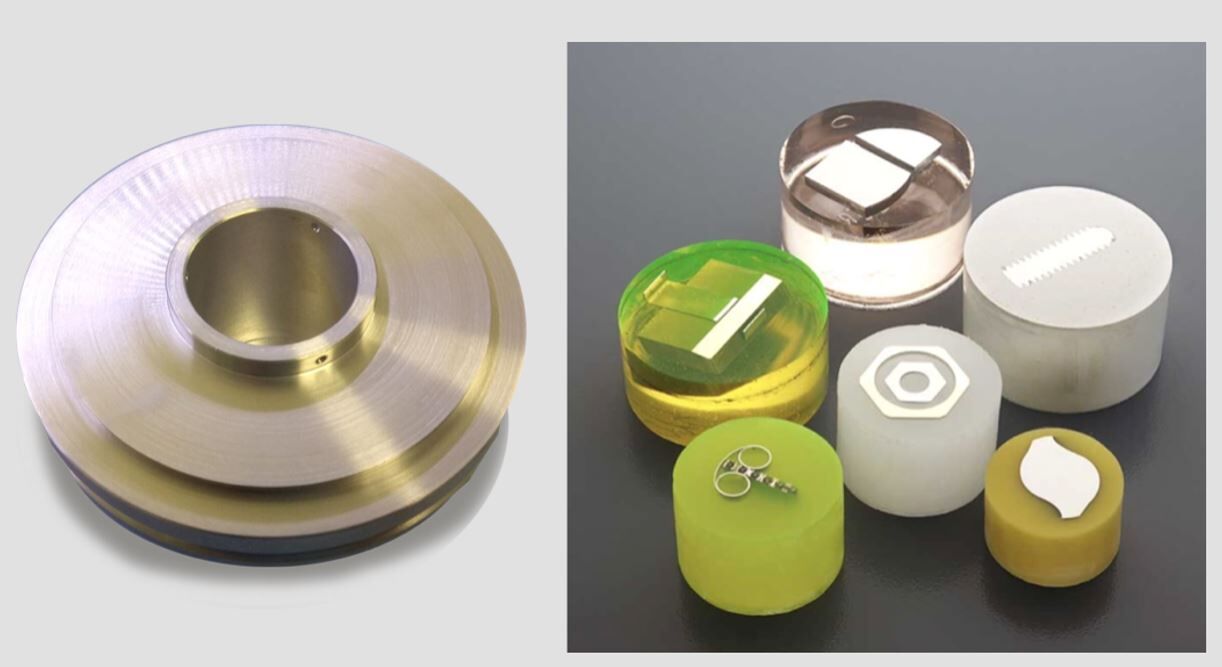

SAMPLE HOLDER FOR MOUNTED/EMBEDDED SAMPLES
The LUXOR sample holder for mounted/embedded samples can hold all types of
samples that are mounted or embedded into resins with diameter ranging from 25 mm to 40 mm and height from 10 mm to 50 mm.

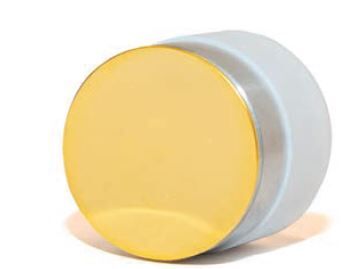

LUXOR GOLD TARGET
Gold target Ø 30 mm, thickness 100 μm (99,999% purity) for use with both LUXOR Au and LUXOR Pt
