BP100 Bubble Pressure Tensiometer
BP100 Bubble Pressure Tensiometer analyses the mobility of surfactants based on dynamic surface tension to optimise formulations used in spraying, coating, printing, or cleaning processes.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Tensiometer |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Dynamic surface tension (SFT) |
| Temperature range | -10 to 130 °C |
| Range (surface tension) | 10 to 100 mN/m (resolution 0.01 mN/m) |
BPT Mobile bubble pressure tensiometer
BPT Mobile Bubble Pressure Tensiometer provides a one-click check of the surfactant content in baths and monitors surface tension changes while dosing.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Tensiometer |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Dynamic surface tension using the Laplace pressure of a gas bubble at a capillary in a liquid |
| Temperature range | 0 to 100 °C |
| Min. recommended sample volume | 15 mL |
SDT Spinning Drop Tensiometer
SDT Spinning Drop Tensiometer is ideal for the measurement of interfacial tension over a wide range using image analysis for optimising emulsions and micro emulsions accurately.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Tensiometer |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Interfacial tension (IFT) calculated by image analysis |
| Temperature control | -10 to 120 °C |
| Range (interfacial tension) | 10-6 to 2000 mN/m (resolution 10-6 mN/m) |

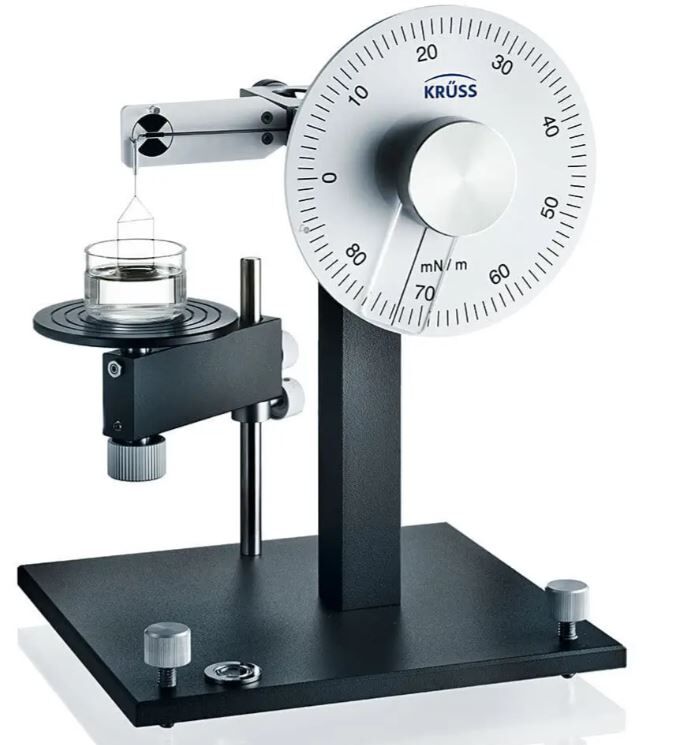

K6 Force Tensiometer
K6 force tensiometer is a manual tensiometer for reliable basic measurement of surface and interfacial tension using the ring tear-off method.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Tensiometer |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Surface and interfacial tension |
| Du Nouy ring range | 1 to 90 mN/m |
| Resolution | 0.5 mN/m |
K20 Force Tensiometer
K20 Force Tensiometer is a stand-alone, semi-automatic instrument for all routine quality control tasks involving surface tension and interfacial tension.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Tensiometer |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Surface tension and interfacial tension and density |
| Temperature range | ‑10 and 130 °C |
Tensiio Force Tensiometer
Tensíío is a modular tensiometer that enables the analysis of surface and interfacial tension, wettability and many other properties of solids and liquids.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Tensiometer |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Surface tension and interfacial tension using the ring, plate, and rod method |
| Temperature control | -15 and 300 °C |
| Range | 1 to 2000 mN/m |
DFA
DFA
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Foam Analyser |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Tensiometry - Force & Optical |
| Illumination | LED |
| Wavelength | 469 nm (optional IR: 850 nm); 633 nm FSM model |

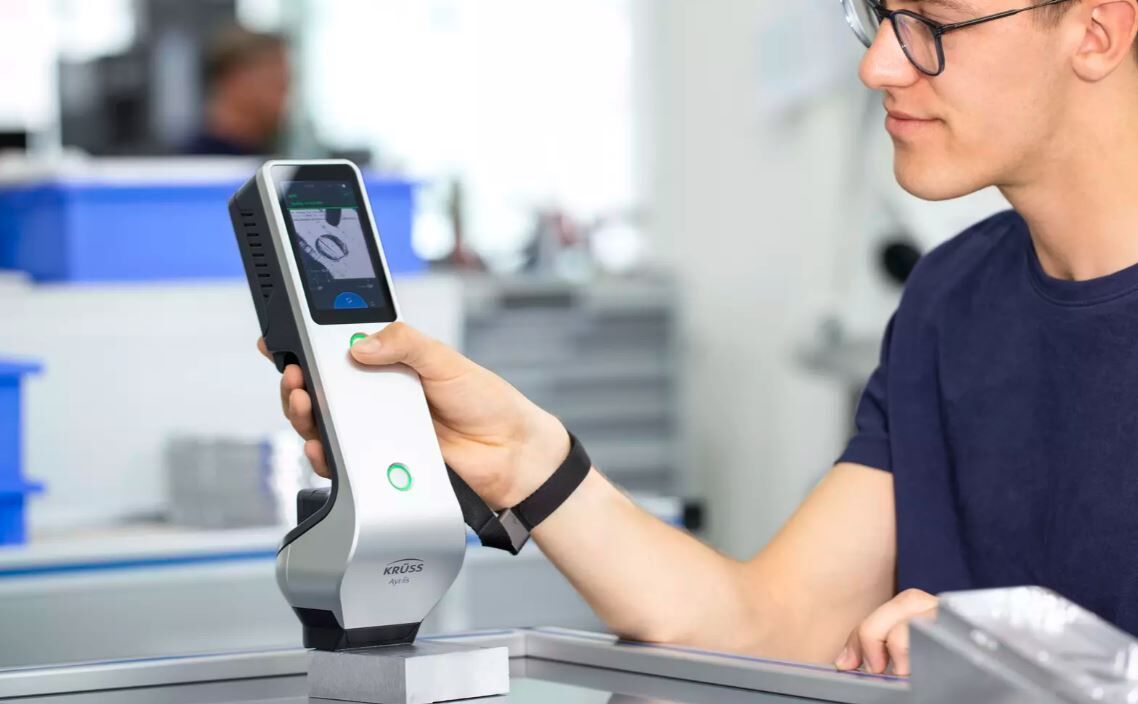

Ayriis 3D Contact Angle
Ayríís uses novel 3D Contact Angle technology to quickly evaluate the wettability of pretreated, cleaned, or coated surfaces.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Drop Shape Analyser |
| Application | Surface Tension - Contact Angle |
| Measurement principle | 3D contact angle |
| Illumination | 90 high power LEDs + 2 lasers |
| Dosing system | water single pressure dosing, 0.1 μL resolution |
MSA Mobile Surface Analyser
The MSA is a fast, easy-to-use hand-held unit for measuring surface free energy (SFE) with one click for wettability analysis in quality control.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Drop Shape Analyser |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Contact angle and SFE according to Owens-Wendt- Rabel-Kaelble, Wu, Zisman, and Fowkes |
| Illumination | high power LED, adjustable |
| Dosing system | Liquid needle, 0.1 μL resolution |
DSA25 Drop Shape Analyser
DSA25 is an easy-to-use, reliable Drop Shape Analyser is designed for determining the wettability of solids by means of the contact angle as well as the surface tension of liquids such as coating substances or adhesives.
| Manufacturer | KRUSS |
|---|---|
| Product Series | KRUSS Drop Shape Analyser |
| Application | Surface Tension - Contact Angle |
| Measurement principle | Surface tension and liquid-liquid interfacial tension using pendant drop or constrained sessile drop |
| Temperture controlled | -30 to 400 °C |
| Illumination | High power monochromatic LED |
Customer Installations
UWS, Advanced Materials Characterisation Facility (AMCF) have installed their new bench-top Phenom XL Scanning Electron Microscope (SEM). The Phenom desktop SEM will serve to assist researchers, students and industry with fast, high resolution material analysis and characterisation.
Phenom XL Desktop SEM
The UWS through collaboration with Phenom-World BV, and ATA Scientific has been able to secure a 2 year placement of the bench-top Scanning Electron Microscope (Phenom SEM) for the shared Centralised Research Facilities to support both research and teaching. The SEM will spend time at Parramatta, Hawkesbury, Campbelltown and Kingswood campuses.
Phenom GSR SEM
UNSW, School of Chemical Engineering has installed their new KSV NIMA Langmuir-Blodgett Trough that can be used to create and characterise single molecule thick films and offers precision control over the lateral packing density of molecules.
Biolin-KSV NIMA LB Trough
LaTrobe University, School of Molecular Sciences, have installed their new NTA system to investigate extracellular vesicles (exosomes, microvesicles) which enables particle by particle analysis for size and concentration with live video capture of particles moving in solution.
Malvern NanoSight NS300
